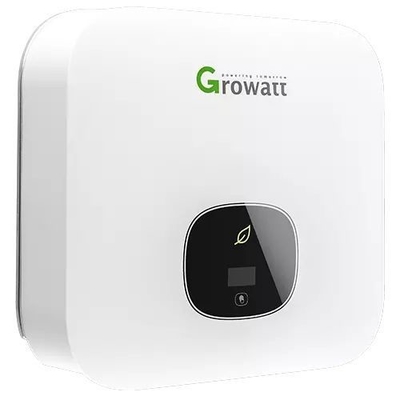

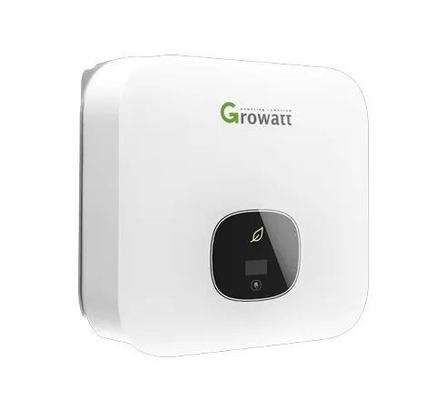

98.2% Inverter Efficiency and Growatt MID 3600 TL-X Single Phase Solar Panel Inverter

Name: 98.2% Inverter Efficiency and Growatt MID 3600 TL-X Single Phase Solar Panel Inverter
Brand: Growatt
SKU: MIN 3600 TL-X
Price: 505.00 USD
Availability: InStock
Rating: 4.5 (105 reviews)

Brand Name:	Growatt
Model Number:	MIN 3600 TL-X
Price:	$505.00/pieces 1-9 pieces

Detail Information

Product Description

Detail Information

Place of Origin:

Anhui, China

Input Voltage:

550V

Output Voltage:

220V/160-300V

Output Current:

17.2 A

Output Frequency:

50Hz,60Hz /±5Hz

Output Type:

Single

Size:

375/350/158

Type:

DC/AC Inverters

Inverter Efficiency:

98.2%

Certificate:

SAA/CE/ROHS/ISO9001/CCC

Warranty:

10 Years

Weight:

10.8 Kg, 10.8kg

Dimensions (W / H / D):

375/350/160mm

Noise Emission (typical):

≤35 DB(A)

Topology:

Transformerless

Cooling:

Natural Convection

Protection Degree:

IP65

Relative Humidity:

0-100%

Altitude:

4000m

AC Connection:

Connector

Display:

OLED+LED/WIFI+APP

Product Description

Dimensions (W / H / D)	375/350/160mm
Weight	10.8kg
Operating temperature range	–25°C ... +60°C
Noise emission (typical)	≤35 dB(A)
Nighttime power consumption	< 1W
Topology	Transformerless
Cooling	Natural convection
Protection degree	IP65
Relative humidity	0-100%
Altitude	4000m
DC connection	H4/MC4(Optional)
AC connection	Connector
Display	OLED+LED/WIFI+APP

Schematic Drawing

Application program

Packing & Delivery

Company Profile

Hefei Sunrise New Energy Co.,Ltd is a professional and fast growing company with more than 10 years experience in New energy field, located in Hefei city ,Anhui province .Our company is committed to high efficient and clean energy research and development, and bring quick & professional service to our customers in all aspects of solar products and projects.
Being the top distributor of Tier 1 solar product brands including Longi, Sungrow, Trina, JA, Canadian, Growatt, Goodwe, Sunrise provides not only solar panels and solar inverters,but also system integration for on-grid systems, off-grid systems, energy storage systems, etc.

Our products have been sold to many countries and regions in Europe, North America, the Middle East and South Africa,etc. also have got certificates of TUV, CE, CQC , etc .

To complete the most intimate cooperation, We will provide customers with the best quality products & service,and sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation .

FAQ

1. What is your main products?
Our main products including Solar Panel, Inverter, Battery,Solar System, Mounting System and other related Solar Power
Accessories;

2. Are you a factory or trading company ?
We are a professional Solar energy products manufacturer in China with own factory and the advanced production line ,can ensure superior supply capacity.

3.How can you guarantee your product quality ?
We will provide a pre-production sample before mass production, Each product will after several inspection procedures before shipment;

4.Could you print our company logo in nameplate and package ?

Yes ,we can customized your logo according to your design and request;

5. What if I don't have export experience ?
We have reliable forwarder agent which can ship items to you by Sea/Air/Express to your seaport or doorstep.Anyway, we will help you choose the most suitable shipping service.
