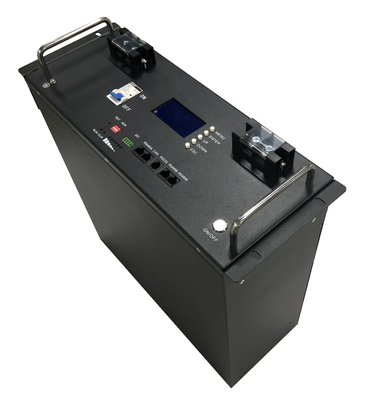

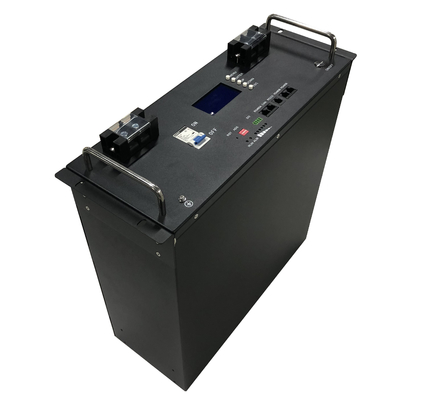

99% Charging Ratio 48V 200Ah LiFePO4 Solar Battery Rack-Mounted Energy Storage System

Name: 99% Charging Ratio 48V 200Ah LiFePO4 Solar Battery Rack-Mounted Energy Storage System
Brand: Sunrise
SKU: TH-48200-R
Price: 1 USD
Availability: InStock
Rating: 4.6 (115 reviews)

Brand Name:	Sunrise
Model Number:	TH-48200-R
MOQ:	2 pieces
Price:	$1,360.00/pieces 2-9 pieces

Detail Information

Product Description

Detail Information

Place of Origin:

Anhui, China

Battery Size:

10440

Weight:

85 Kg

The Charging Ratio:

99%

The Discharge Rate:

99%

Storage Type:

Storage Box

Anode Material:

LFP

Application:

Home Appliances

Electric Energy:

9600 Wh

Material(Cell):

LiFePO4

Product Name:

Low-voltage Lithium Battery

Voltage Range:

42-54V

Communication:

RS323/RS485/CAN

Protection:

IP20

Dimension:

483*680*178 Mm

Scalability:

Up To 10 Parallel

Installation Mode:

Rack-mounted

Design Life:

10 Years

OEM Order:

Accepted

Product Description

Product Description

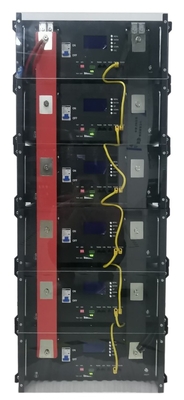

LFP-Rack box, a Low-voltage lithium battery. With a scalable modular design, the capacity
range can be expanded from 9.6KWh to 96KWh.

The modules are connected by cables
to support high-power work and are easy to install and maintain. Long life technology
ensures more than 6000 cycles with 80% DOD.

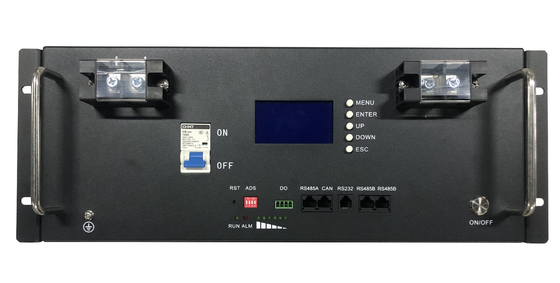

No.	Item	Description	No.	Item	Description
1	Rack mountear	For battery pack mounting	10	RUN	Run LED display
2	Handle	Handle for carrier	11	ALM	Alarm LED display
3	Battery +	Terminal M8 screw	12	SOC	Capacity remaining display
4	Reset	Emergency reset	13	RS485A	Communication port with inverter
5	ADS	Battery address	14	CANBUS	Communication port with inverter
6	LCD	Display battery information	15	RS232A	Communication port with PC
7	Battery -	Terminal M8 screw	16	RS485B	Internal communication between packs
8	GND	GND Connection for safety	17	Switch	ON/OFF Battery by software
9	MCB	DC output

Specification

Details and Images

Application

Company Profile

Hefei Sunrise New Energy Co.,Ltd is a professional and fast growing company with more than 10 years experience in New energy field, located in Hefei city, Anhui province. Our company is committed to high efficient and clean energy research and development, and bring quick & professional service to our customers in all aspects of solar products and projects.
Being the top distributor of Tier 1 solar product brands including Longi, Sungrow, Trina, JA, Canadian, Growatt, Goodwe, Sunrise provides not only solar panels and solar inverters, but also system integration for on-grid systems, off-grid systems, energy storage systems, etc.

Our products have been sold to many countries and regions in Europe, North America, the Middle East and South Africa, etc. Also have got certificates of TUV ,CE, CQC, etc.

To complete the most intimate cooperation, we will provide customers with the best quality products & service, and sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation.

Our strength

1. 10 years experience of PV products, cheaper price.
2. We provide very fast delivery after order confirmed.
3. Professional technical team support.
4. One-stop photovoltaic product solutions to provide.
5. Complete certificates.
6. Provide ODM/OEM service.
7. Long warranty and after-sales service.

Packing & Delivery

FAQ

Q1. What is your main products?
Our main products including Solar Panel, Inverter, Battery,Solar System, Mounting System and other related Solar Power
Accessories.

Q2. Are you a factory or trading company?
We are a professional Solar energy products manufacturer in China with own factory and the advanced production line, can ensure superior supply capacity.

Q3. How can you guarantee your product quality?
We will provide a pre-production sample before mass production. Each product will after several inspection procedures before shipment.

Q4. Could you print our company logo in nameplate and package?
Yes ,we can customized your logo according to your design and request.

Q5. What if I don't have export experience?
We have reliable forwarder agent which can ship items to you by Sea/Air/Express to your seaport or doorstep.Anyway, we will help you choose the most suitable shipping service.
