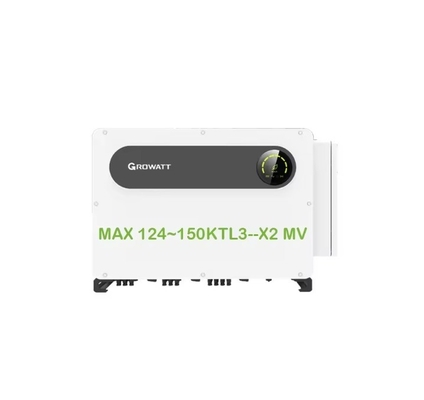

Inverter Growatt Solar Inverter MAX 124-150KTL3-X2 MV Three Phase 124Kw 125Kw 136Kw 150Kw
  • name
  • name
  • name
  • name
  • name
  • name

Inverter Growatt Solar Inverter MAX 124-150KTL3-X2 MV Three Phase 124Kw 125Kw 136Kw 150Kw

Brand Name: Growatt
Model Number: MAX 124~150KTL3-X2 MV
Price: $3,800.00/pieces 1-99 pieces
Detail Information
Product Description
Detail Information
Place of Origin:
Anhui, China
Input Voltage:
720V, 720V
Output Voltage:
277V/480V, 277V/480V
Output Current:
164.1A~198.5A
Output Frequency:
50/60HZ
Output Type:
Three Phase
Size:
970/640/345mm
Type:
DC/AC Inverters
Inverter Efficiency:
99%
Certificate:
CE, VDE 0126, Greece EN 50549-1, C10/C11
Warranty:
10 Yeas, 10 Years
Weight:
84kgs, 84kgs
Name:
Pure Sine Solar Inverter
Application:
Home Solar Power System
Brand:
Growatt
Cooling:
Smart Air Cooling
Protection Degree:
IP66
Dimension:
970/640/345mm
Product Description
Product Description
Inverter Growatt Solar Inverter MAX 124-150KTL3-X2 MV Three Phase 124Kw 125Kw 136Kw 150Kw 0
Inverter Growatt Solar Inverter MAX 124-150KTL3-X2 MV Three Phase 124Kw 125Kw 136Kw 150Kw 1
Inverter Growatt Solar Inverter MAX 124-150KTL3-X2 MV Three Phase 124Kw 125Kw 136Kw 150Kw 2
Inverter Growatt Solar Inverter MAX 124-150KTL3-X2 MV Three Phase 124Kw 125Kw 136Kw 150Kw 3
Specification
Dimensions (W / H / D)
970/640/345mm
Weight
84kg
Operating temperature range
–30°C ... +60°C
Nighttime power consumption
< 1W
Cooling
Smart cooling
Protection degree
IP66
Relative humidity
0-100%
Altitude
4000m
DC connection
H4/MC4(Optional)
AC connection
Cable Gland+OT Terminal

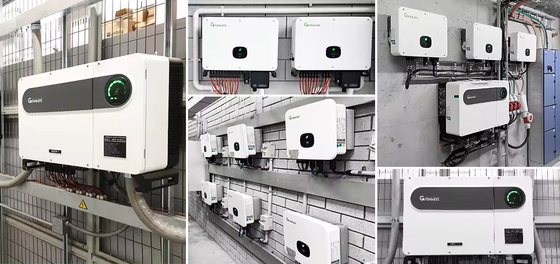

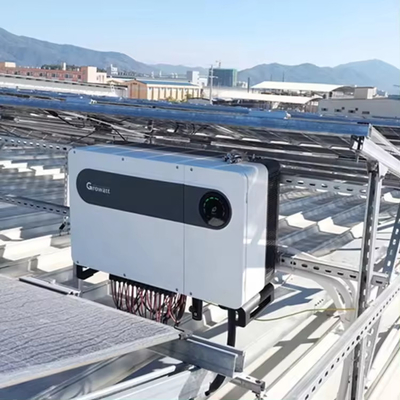

Application
Inverter Growatt Solar Inverter MAX 124-150KTL3-X2 MV Three Phase 124Kw 125Kw 136Kw 150Kw 4
Inverter Growatt Solar Inverter MAX 124-150KTL3-X2 MV Three Phase 124Kw 125Kw 136Kw 150Kw 5
Inverter Growatt Solar Inverter MAX 124-150KTL3-X2 MV Three Phase 124Kw 125Kw 136Kw 150Kw 6
Inverter Growatt Solar Inverter MAX 124-150KTL3-X2 MV Three Phase 124Kw 125Kw 136Kw 150Kw 7
Inverter Growatt Solar Inverter MAX 124-150KTL3-X2 MV Three Phase 124Kw 125Kw 136Kw 150Kw 8
Inverter Growatt Solar Inverter MAX 124-150KTL3-X2 MV Three Phase 124Kw 125Kw 136Kw 150Kw 9

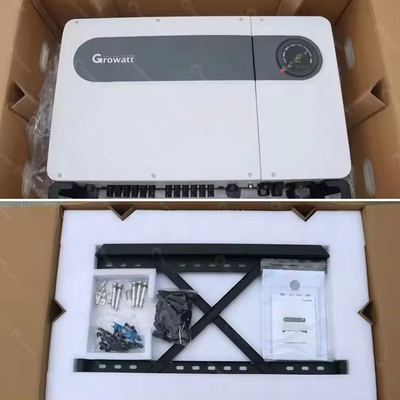

Packing & Delivery
Inverter Growatt Solar Inverter MAX 124-150KTL3-X2 MV Three Phase 124Kw 125Kw 136Kw 150Kw 10
Inverter Growatt Solar Inverter MAX 124-150KTL3-X2 MV Three Phase 124Kw 125Kw 136Kw 150Kw 11
Inverter Growatt Solar Inverter MAX 124-150KTL3-X2 MV Three Phase 124Kw 125Kw 136Kw 150Kw 12
Inverter Growatt Solar Inverter MAX 124-150KTL3-X2 MV Three Phase 124Kw 125Kw 136Kw 150Kw 13
Inverter Growatt Solar Inverter MAX 124-150KTL3-X2 MV Three Phase 124Kw 125Kw 136Kw 150Kw 14
Inverter Growatt Solar Inverter MAX 124-150KTL3-X2 MV Three Phase 124Kw 125Kw 136Kw 150Kw 15
Inverter Growatt Solar Inverter MAX 124-150KTL3-X2 MV Three Phase 124Kw 125Kw 136Kw 150Kw 16
Company Profile
Hefei Sunrise New Energy Co.,Ltd is a professional and fast growing company with more than 10 years experience in New energy field, located in Hefei city ,Anhui province .Our company is committed to high efficient and clean energy research and development and bring quick & professional service to our customers in all aspects of solar products and projects.
Being the top distributor of Tier 1 solar product brands including Longi, Sungrow, Trina, JA, Canadian, Growatt, Goodwe, Sunriseprovides not only solar panels and solar inverters,but also system integration for on-grid systems, off-grid systems, energy storage systems, etc.
Our products have been sold to many countries and regions in Europe, North America, the Middle East and South Africa,etc. also have got certificates of TUV,CE,CQC ,etc .
To complete the most intimate cooperation, We will provide customers with the best quality products & service,and sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation .
Inverter Growatt Solar Inverter MAX 124-150KTL3-X2 MV Three Phase 124Kw 125Kw 136Kw 150Kw 17
Inverter Growatt Solar Inverter MAX 124-150KTL3-X2 MV Three Phase 124Kw 125Kw 136Kw 150Kw 18
Inverter Growatt Solar Inverter MAX 124-150KTL3-X2 MV Three Phase 124Kw 125Kw 136Kw 150Kw 19
Inverter Growatt Solar Inverter MAX 124-150KTL3-X2 MV Three Phase 124Kw 125Kw 136Kw 150Kw 20
Certifications
Inverter Growatt Solar Inverter MAX 124-150KTL3-X2 MV Three Phase 124Kw 125Kw 136Kw 150Kw 21
Inverter Growatt Solar Inverter MAX 124-150KTL3-X2 MV Three Phase 124Kw 125Kw 136Kw 150Kw 22
FAQ
1. What is your main products?
Our main products including Solar Panel, Inverter, Battery,Solar System, Mounting System and other related Solar Power
Accessories;

2. Are you a factory or trading company ?
We are a professional Solar energy products manufacturer in China with own factory and the advanced production line ,can ensure superior supply capacity;

3.How can you guarantee your product quality ?
We will provide a pre-production sample before mass production, Each product will after several inspection procedures before shipment;

4.Could you print our company logo in nameplate and package ?
Yes ,we can customized your logo according to your design and request;

5. What if I don't have export experience ?
We have reliable forwarder agent which can ship items to you by Sea/Air/Express to your seaport or doorstep.Anyway, we will help you choose the most suitable shipping service.
