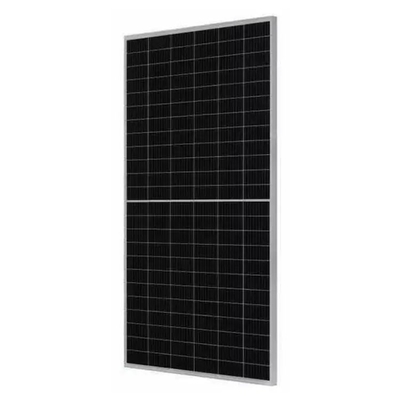

620W-650W N-type Bifacial TOPCon Solar Panel Kit with TOPCon Cells and IP68 Junction Box

Brand Name: CanadianSolar
Model Number: TOPBiHiKu7_CS7L 620-650w
MOQ: 10000 watts
Price: $0.13/watts >=10000 watts
Detail Information
Product Description
Detail Information
Place of Origin:
Anhui, China
Cell Size:
210mmx210mm
Type:
Bifacial, Double-glass, N-TYPE
Panel Dimensions:
2172*1303*33
Panel Efficiency:
22.1-23.0%
Warranty:
25years
Totipotent:
Photovoltaic Panel
Cell Type:
TOPCon Cells
Cell Arrangement:
120 [2 X (10 X 6) ]
Dimensions:
2172*1303*33
Weight:
34.5kg(72.1lbs)
Frame:
Anodized Aluminium Alloy
Junction Box:
IP68,3 Bypass Diodes
Connector:
T6 Or MC4-EVO2 Or MC4-EVO2A
Maximum System Voltage:
1500V (IEC/UL)
Maximum Series Fuse Rating:
35A
Product Description
Products Description
620W-650W N-type Bifacial TOPCon Solar Panel Kit with TOPCon Cells and IP68 Junction Box 0
620W-650W N-type Bifacial TOPCon Solar Panel Kit with TOPCon Cells and IP68 Junction Box 1
620W-650W N-type Bifacial TOPCon Solar Panel Kit with TOPCon Cells and IP68 Junction Box 2
Cell Type
TOPCon cells
Cell Arrangement
120 [2 x (10 x 6) ]
Dimensions
2172 ˣ 1303 ˣ 33 mm (85.5 ˣ 51.3 ˣ 1.30 in)
Weight
34.5 kg (76.1 lbs)
Front Glass
2.0 mm heat strengthened glass with antireflective coating
Back Glass
2.0 mm heat strengthened glass
Frame
Anodized aluminium alloy
J-Box
IP68, 3 bypass diodes
Cable
4.0 mm² (IEC), 12 AWG (UL)
Cable Length
(Including Connector)
360 mm (14.2 in) (+) / 200 mm (7.9 in) (-) or customized length*
Connector
T6 or MC4-EVO2 or MC4-EVO2A
Per Pallet
33 pieces
Per Container (40' HQ)
594 pieces or 528 pieces (only for US & Canada)
Our Products
620W-650W N-type Bifacial TOPCon Solar Panel Kit with TOPCon Cells and IP68 Junction Box 3
620W-650W N-type Bifacial TOPCon Solar Panel Kit with TOPCon Cells and IP68 Junction Box 4
Global Pipeline in Key Regions
620W-650W N-type Bifacial TOPCon Solar Panel Kit with TOPCon Cells and IP68 Junction Box 5
Featured Projects
620W-650W N-type Bifacial TOPCon Solar Panel Kit with TOPCon Cells and IP68 Junction Box 6
620W-650W N-type Bifacial TOPCon Solar Panel Kit with TOPCon Cells and IP68 Junction Box 7
Product packaging
620W-650W N-type Bifacial TOPCon Solar Panel Kit with TOPCon Cells and IP68 Junction Box 8
620W-650W N-type Bifacial TOPCon Solar Panel Kit with TOPCon Cells and IP68 Junction Box 9
620W-650W N-type Bifacial TOPCon Solar Panel Kit with TOPCon Cells and IP68 Junction Box 10
620W-650W N-type Bifacial TOPCon Solar Panel Kit with TOPCon Cells and IP68 Junction Box 11
620W-650W N-type Bifacial TOPCon Solar Panel Kit with TOPCon Cells and IP68 Junction Box 12
Application program
620W-650W N-type Bifacial TOPCon Solar Panel Kit with TOPCon Cells and IP68 Junction Box 13
620W-650W N-type Bifacial TOPCon Solar Panel Kit with TOPCon Cells and IP68 Junction Box 14
620W-650W N-type Bifacial TOPCon Solar Panel Kit with TOPCon Cells and IP68 Junction Box 15
Company Profile
Hefei Sunrise New Energy Co.,Ltd is a professional and fast growing company with more than 10 years experience in New energy field, located in Hefei city ,Anhui province .Our company is committed to high efficient and clean energy research and development ,and bring quick & professional service to our customers in all aspects of solar products and projects.
Being the top distributor of Tier 1 solar product brands including Longi, Sungrow, Trina, JA, Canadian, Growatt, Goodwe, Sunrise provides not only solar panels and solar inverters,but also system integration for on-grid systems, off-grid systems, energy storage systems, etc.
Our products have been sold to many countries and regions in Europe, North America, the Middle East and South Africa,etc. also have got certificates of TUV, CE, CQC , etc .
To complete the most intimate cooperation, We will provide customers with the best quality products & service,and sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation .

620W-650W N-type Bifacial TOPCon Solar Panel Kit with TOPCon Cells and IP68 Junction Box 16
620W-650W N-type Bifacial TOPCon Solar Panel Kit with TOPCon Cells and IP68 Junction Box 17
FAQ
1. What is your main products?
Our main products including Solar Panel, Inverter, Battery,Solar System, Mounting System and other related Solar Power Accessories;

2. Are you a factory or trading company ?
We are a professional Solar energy products manufacturer in China with own factory and the advanced production line ,can ensure superior supply capacity.

3.How can you guarantee your product quality ?
We will provide a pre-production sample before mass production, Each product will after several inspection procedures before shipment;

4.Could you print our company logo in nameplate and package ?
Yes ,we can customized your logo according to your design and request;

5. What if I don't have export experience ?
We have reliable forwarder agent which can ship items to you by Sea/Air/Express to your seaport or doorstep.Anyway, we will help you choose the most suitable shipping service.
620W-650W N-type Bifacial TOPCon Solar Panel Kit with TOPCon Cells and IP68 Junction Box 18
