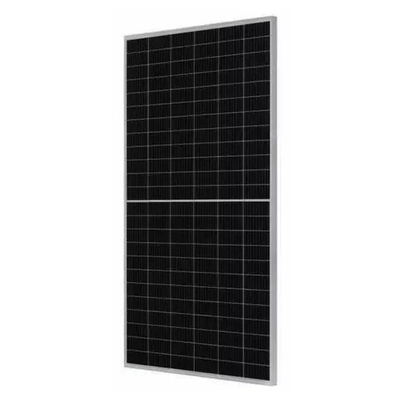

Canadian 565W-595W Generator with Panel Set and Maximum System Voltage of 1500V IEC/UL

Brand Name: CanadianSolar
Model Number: TOPBiHiKu6_CS6-TB 565-595W
MOQ: 10000 watts
Price: $0.13/watts >=10000 watts
Detail Information
Product Description
Detail Information
Place of Origin:
Anhui, China
Cell Size:
210mmx210mm
Type:
Bifacial, Double-glass, N-TYPE
Panel Dimensions:
2278*1134*30
Panel Efficiency:
21.9-23.0%
Warranty:
25years
Totipotent:
Photovoltaic Panel
Cell Type:
TOPCon Cells
Cell Arrangement:
144[2*(12*6)]
Dimensions:
2278*1134*30
Weight:
32.3 Kg(71.2 Lbs)
Frame:
Anodized Aluminium Alloy
Junction Box:
IP68,3 Bypass Diodes
Connector:
T6 Or MC4-EVO2 Or MC4-EVO2A
Maximum System Voltage:
1500V (IEC/UL)or 1000 V (IEC/UL)
Maximum Series Fuse Rating:
30A
Product Description
Products Description
Canadian 565W-595W Generator with Panel Set and Maximum System Voltage of 1500V IEC/UL 0
Canadian 565W-595W Generator with Panel Set and Maximum System Voltage of 1500V IEC/UL 1
Canadian 565W-595W Generator with Panel Set and Maximum System Voltage of 1500V IEC/UL 2
Cell Type
TOPCon cells
Cell Arrangement
144 [2 x (12 x 6) ]
Dimensions
2278 ˣ 1134 ˣ 30 mm (89.7 ˣ 44.6 ˣ 1.18 in)
Weight
32.3 kg (71.2 lbs)
Front Glass
2.0 mm heat strengthened glass with antireflective coating
Back Glass
2.0 mm heat strengthened glass
Frame
Anodized aluminium alloy
J-Box
IP68, 3 bypass diodes
Cable
4.0 mm² (IEC), 12 AWG (UL)
Cable Length
(Including Connector)
300 mm (11.8 in) (+) / 200 mm (7.9 in) (-) or customized length*
Connector
T6 or MC4-EVO2 or MC4-EVO2A
Per Pallet
35 pieces
Per Container (40' HQ)
700 pieces or 560 pieces (only for US & Canada)
