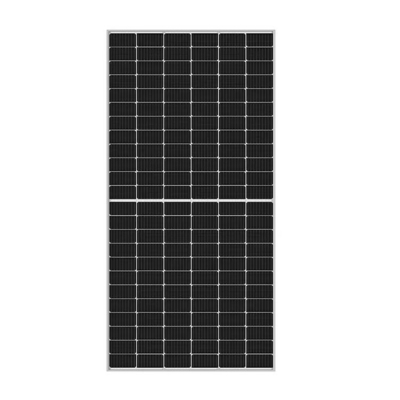

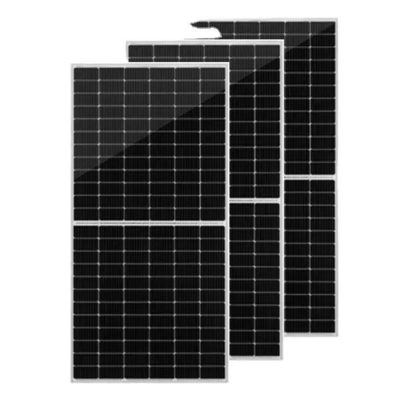

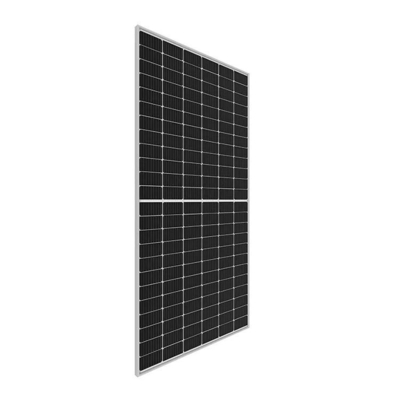

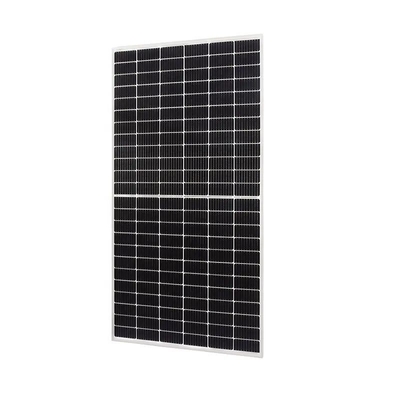

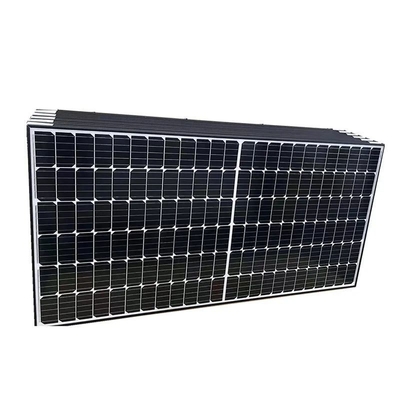

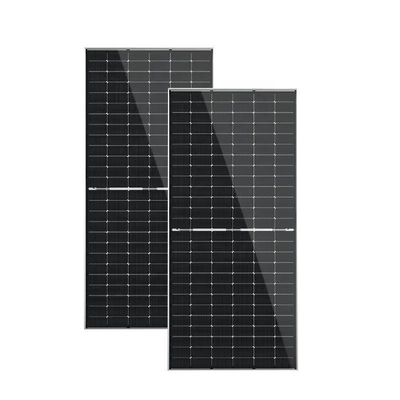

Lightweight 645-675W Canadian Pvt Solar Thermal Hybrid Panel with Mono PERC HiKu7-CS7N

Brand Name: CanadianSolar
Model Number: HiKu7-CS7N 645-675W
MOQ: 10000 watts
Price: $0.13/watts >=10000 watts
Detail Information
Product Description
Detail Information
Place of Origin:
Anhui, China
Cell Size:
210mmx210mm
Type:
PERC
Panel Dimensions:
2384*1303*35
Panel Efficiency:
20.8-21.7%
Warranty:
25years
Totipotent:
Photovoltaic Panel
Cell Type:
Mono-crystalline
Cell Arrangement:
132 [2 X (11 X 6) ]
Dimensions:
2384*1303*35
Weight:
34.4 Kg (75.8 Lbs)
Frame:
Anodized Aluminium Alloy
Junction Box:
IP68,3 Bypass Diodes
Connector:
T6 Or MC4-EVO2 Or MC4-EVO2A
Maximum System Voltage:
1500 V (IEC/UL) Or 1000 V (IEC/UL)
Maximum Series Fuse Rating:
30A
Product Description
Products Description
Lightweight 645-675W Canadian Pvt Solar Thermal Hybrid Panel with Mono PERC HiKu7-CS7N 0
Lightweight 645-675W Canadian Pvt Solar Thermal Hybrid Panel with Mono PERC HiKu7-CS7N 1
Lightweight 645-675W Canadian Pvt Solar Thermal Hybrid Panel with Mono PERC HiKu7-CS7N 2
Cell Type
Mono-crystalline
Cell Arrangement
132 [2 x (11 x 6) ]
Dimensions
2384 ˣ 1303 ˣ 35 mm  (93.9 ˣ 51.3 ˣ 1.38 in)
Weight
34.4 kg (75.8 lbs)
Front Glass
3.2 mm tempered glass with anti-reflective coating
Frame
Anodized aluminium alloy
J-Box
IP68, 3 bypass diodes
Cable
4.0 mm² (IEC), 10 AWG (UL)
Cable Length
(Including Connector)
360 mm (14.2 in) (+) / 200 mm (7.9 in) (-) or
customized length*
Connector
T6 or MC4-EVO2 or MC4-EVO2A
Per Pallet
31 pieces
Per Container (40' HQ)
558 pieces
Our Products
Lightweight 645-675W Canadian Pvt Solar Thermal Hybrid Panel with Mono PERC HiKu7-CS7N 3
Lightweight 645-675W Canadian Pvt Solar Thermal Hybrid Panel with Mono PERC HiKu7-CS7N 4
Global Pipeline in Key Regions
Lightweight 645-675W Canadian Pvt Solar Thermal Hybrid Panel with Mono PERC HiKu7-CS7N 5
Featured Projects
Lightweight 645-675W Canadian Pvt Solar Thermal Hybrid Panel with Mono PERC HiKu7-CS7N 6
Lightweight 645-675W Canadian Pvt Solar Thermal Hybrid Panel with Mono PERC HiKu7-CS7N 7
Product packaging
Lightweight 645-675W Canadian Pvt Solar Thermal Hybrid Panel with Mono PERC HiKu7-CS7N 8
Lightweight 645-675W Canadian Pvt Solar Thermal Hybrid Panel with Mono PERC HiKu7-CS7N 9
Lightweight 645-675W Canadian Pvt Solar Thermal Hybrid Panel with Mono PERC HiKu7-CS7N 10
Lightweight 645-675W Canadian Pvt Solar Thermal Hybrid Panel with Mono PERC HiKu7-CS7N 11
Lightweight 645-675W Canadian Pvt Solar Thermal Hybrid Panel with Mono PERC HiKu7-CS7N 12
Application program
Lightweight 645-675W Canadian Pvt Solar Thermal Hybrid Panel with Mono PERC HiKu7-CS7N 13
Lightweight 645-675W Canadian Pvt Solar Thermal Hybrid Panel with Mono PERC HiKu7-CS7N 14
Lightweight 645-675W Canadian Pvt Solar Thermal Hybrid Panel with Mono PERC HiKu7-CS7N 15
Company Profile
Hefei Sunrise New Energy Co.,Ltd is a professional and fast growing company with more than 10 years experience in New energy field, located in Hefei city ,Anhui province .Our company is committed to high efficient and clean energy research and development ,and bring quick & professional service to our customers in all aspects of solar products and projects.
Being the top distributor of Tier 1 solar product brands including Longi, Sungrow, Trina, JA, Canadian, Growatt, Goodwe, Sunrise provides not only solar panels and solar inverters,but also system integration for on-grid systems, off-grid systems, energy storage systems, etc.
Our products have been sold to many countries and regions in Europe, North America, the Middle East and South Africa,etc. also have got certificates of TUV, CE, CQC , etc .
To complete the most intimate cooperation, We will provide customers with the best quality products & service,and sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation .

Lightweight 645-675W Canadian Pvt Solar Thermal Hybrid Panel with Mono PERC HiKu7-CS7N 16
Lightweight 645-675W Canadian Pvt Solar Thermal Hybrid Panel with Mono PERC HiKu7-CS7N 17
FAQ
1. What is your main products?
Our main products including Solar Panel, Inverter, Battery,Solar System, Mounting System and other related Solar Power Accessories;

2. Are you a factory or trading company ?
We are a professional Solar energy products manufacturer in China with own factory and the advanced production line ,can ensure superior supply capacity.

3.How can you guarantee your product quality ?
We will provide a pre-production sample before mass production, Each product will after several inspection procedures before shipment;

4.Could you print our company logo in nameplate and package ?
Yes ,we can customized your logo according to your design and request;

5. What if I don't have export experience ?
We have reliable forwarder agent which can ship items to you by Sea/Air/Express to your seaport or doorstep.Anyway, we will help you choose the most suitable shipping service.
