8000w 8kw 3 Phase Hybrid Solar Inverter with Low Voltage Support and IEC/EN Certified

Brand Name: Deye
Model Number: SUN-5-12K-SG04LP3-EU
Price: $1,000.00/pieces 1-9 pieces
Detail Information
Product Description
Detail Information
Place of Origin:
Anhui, China
Input Voltage:
550V, 550V
Output Voltage:
220/380V,230/400V, 220/380V, 230/400V
Output Current:
12.1/11.6A
Output Frequency:
50/60HZ
Output Type:
Three Phase
Size:
422*658*254mm
Type:
DC/AC Inverters
Inverter Efficiency:
97.6
Certificate:
IEC/EN 61000-6-1/2/3/4
Warranty:
10 Yeas, 10 Years
Weight:
38kgs
Name:
Deye Three Phase Hybrid Inverter
Application:
Solar Power System
Brand:
Deye
Altitude:
2000m
Cooling:
Intelligent Air Cooling
Ingress Protection(IP) Rating:
IP 65
Operating Temperature Range (℃):
-40 To +60℃
Product Description
Product Description
8000w 8kw 3 Phase Hybrid Solar Inverter with Low Voltage Support and IEC/EN Certified 0
8000w 8kw 3 Phase Hybrid Solar Inverter with Low Voltage Support and IEC/EN Certified 1
8000w 8kw 3 Phase Hybrid Solar Inverter with Low Voltage Support and IEC/EN Certified 2
8000w 8kw 3 Phase Hybrid Solar Inverter with Low Voltage Support and IEC/EN Certified 3
8000w 8kw 3 Phase Hybrid Solar Inverter with Low Voltage Support and IEC/EN Certified 4
8000w 8kw 3 Phase Hybrid Solar Inverter with Low Voltage Support and IEC/EN Certified 5
8000w 8kw 3 Phase Hybrid Solar Inverter with Low Voltage Support and IEC/EN Certified 6
8000w 8kw 3 Phase Hybrid Solar Inverter with Low Voltage Support and IEC/EN Certified 7
Specification
Operating Temperature Range (℃)
-40 to +60℃, >45℃ Derating
Permissible Ambient Humidity
0-100%
Permissible Altitude
2000 m
Noise (dB)
≤55
Ingress Protection(IP) Rating
IP 65
Inverter Topology
Non-Isolated
Over Voltage Category
OVC II(DC), OVC III(AC)
Cabinet Size (WxHxD mm)
422×658×254 (Excluding Connectors and Brackets)
Weight (kg)
38
Type of Cooling
Intelligent Air Cooling
Application
8000w 8kw 3 Phase Hybrid Solar Inverter with Low Voltage Support and IEC/EN Certified 8
8000w 8kw 3 Phase Hybrid Solar Inverter with Low Voltage Support and IEC/EN Certified 9
8000w 8kw 3 Phase Hybrid Solar Inverter with Low Voltage Support and IEC/EN Certified 10

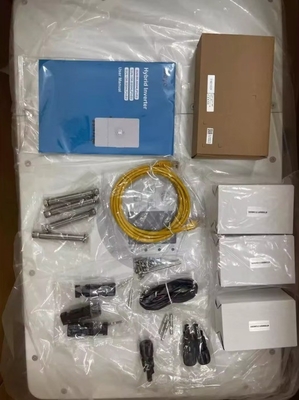

Packing & Delivery
8000w 8kw 3 Phase Hybrid Solar Inverter with Low Voltage Support and IEC/EN Certified 11
8000w 8kw 3 Phase Hybrid Solar Inverter with Low Voltage Support and IEC/EN Certified 12
8000w 8kw 3 Phase Hybrid Solar Inverter with Low Voltage Support and IEC/EN Certified 13
8000w 8kw 3 Phase Hybrid Solar Inverter with Low Voltage Support and IEC/EN Certified 14
8000w 8kw 3 Phase Hybrid Solar Inverter with Low Voltage Support and IEC/EN Certified 15
8000w 8kw 3 Phase Hybrid Solar Inverter with Low Voltage Support and IEC/EN Certified 16
Company Profile
Hefei Sunrise New Energy Co.,Ltd is a professional and fast growing company with more than 10 years experience in New energy field, located in Hefei city ,Anhui province .Our company is committed to high efficient and clean energy research and development and bring quick & professional service to our customers in all aspects of solar products and projects.
Being the top distributor of Tier 1 solar product brands including Longi, Sungrow, Trina, JA, Canadian, Growatt, Goodwe, Sunriseprovides not only solar panels and solar inverters,but also system integration for on-grid systems, off-grid systems, energy storage systems, etc.
Our products have been sold to many countries and regions in Europe, North America, the Middle East and South Africa,etc. also have got certificates of TUV,CE,CQC ,etc .
To complete the most intimate cooperation, We will provide customers with the best quality products & service,and sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation .
8000w 8kw 3 Phase Hybrid Solar Inverter with Low Voltage Support and IEC/EN Certified 17
8000w 8kw 3 Phase Hybrid Solar Inverter with Low Voltage Support and IEC/EN Certified 18
8000w 8kw 3 Phase Hybrid Solar Inverter with Low Voltage Support and IEC/EN Certified 19
8000w 8kw 3 Phase Hybrid Solar Inverter with Low Voltage Support and IEC/EN Certified 20
Certifications
8000w 8kw 3 Phase Hybrid Solar Inverter with Low Voltage Support and IEC/EN Certified 21
8000w 8kw 3 Phase Hybrid Solar Inverter with Low Voltage Support and IEC/EN Certified 22
FAQ
1. What is your main products?
Our main products including Solar Panel, Inverter, Battery,Solar System, Mounting System and other related Solar Power
Accessories;

2. Are you a factory or trading company ?
We are a professional Solar energy products manufacturer in China with own factory and the advanced production line ,can ensure superior supply capacity;

3.How can you guarantee your product quality ?
We will provide a pre-production sample before mass production, Each product will after several inspection procedures before shipment;

4.Could you print our company logo in nameplate and package ?
Yes ,we can customized your logo according to your design and request;

5. What if I don't have export experience ?
We have reliable forwarder agent which can ship items to you by Sea/Air/Express to your seaport or doorstep.Anyway, we will help you choose the most suitable shipping service.
