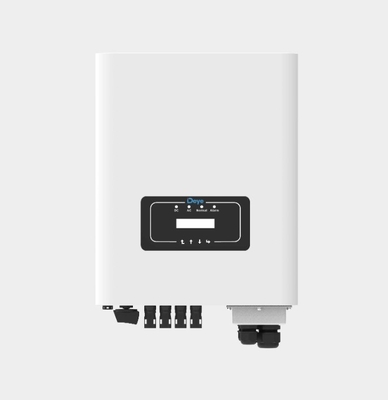

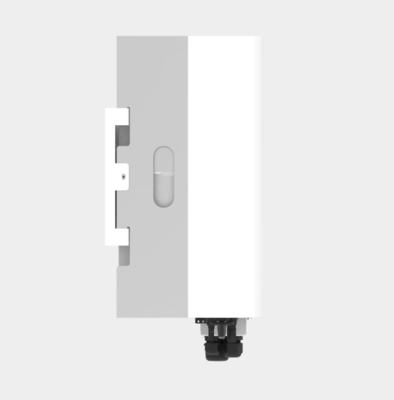

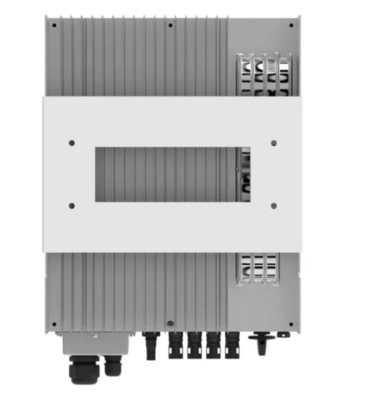

Single Phase Solar System Deye PV Inverter 9KW 10KW Sun-9/10K-G02P1 with IP65 Rating

Brand Name: DEYE
Model Number: SUN-9/10K-G02P1-EU-AM2
Price: $780.00/pieces 1-19 pieces
Detail Information
Product Description
Detail Information
Place of Origin:
Anhui, China
Input Voltage:
360V, 360V
Output Voltage:
220/230V, 220/230V
Output Current:
41/39.2A
Output Frequency:
50/60HZ
Output Type:
Single
Size:
330*410*213.5mm
Type:
DC/AC Inverters
Inverter Efficiency:
97.7
Certificate:
IEC/EN 61000-6-1/2/3/4
Warranty:
10 Yeas, 10 Years
Weight:
14.8kgs
Name:
Deye Single Phase String Inverter
Application:
Solar Power System
Brand:
Deye
Altitude:
3000m
Cooling:
Natural Cooling
Ingress Protection(IP) Rating:
IP65
Operating Temperature Range (℃):
-25 To +60℃
Product Description
Product Description
Single Phase Solar System Deye PV Inverter 9KW 10KW Sun-9/10K-G02P1 with IP65 Rating 0
Single Phase Solar System Deye PV Inverter 9KW 10KW Sun-9/10K-G02P1 with IP65 Rating 1
Single Phase Solar System Deye PV Inverter 9KW 10KW Sun-9/10K-G02P1 with IP65 Rating 2
Single Phase Solar System Deye PV Inverter 9KW 10KW Sun-9/10K-G02P1 with IP65 Rating 3
Single Phase Solar System Deye PV Inverter 9KW 10KW Sun-9/10K-G02P1 with IP65 Rating 4
Single Phase Solar System Deye PV Inverter 9KW 10KW Sun-9/10K-G02P1 with IP65 Rating 5
Single Phase Solar System Deye PV Inverter 9KW 10KW Sun-9/10K-G02P1 with IP65 Rating 6
Single Phase Solar System Deye PV Inverter 9KW 10KW Sun-9/10K-G02P1 with IP65 Rating 7
Specification
Operating Temperature Range (℃)
-25 to +60℃, >45℃ Derating
Permissible Ambient Humidity
0-100%
Permissible Altitude
3000 m
Noise (dB)
≤35
Ingress Protection(IP) Rating
IP 65
Inverter Topology
Non-Isolated
Over Voltage Category
OVC II(DC), OVC III(AC)
Cabinet Size (WxHxD mm)
330×410×213.5 (Excluding Connectors and Brackets)
Weight (kg)
14.8kgs
Type of Cooling
Natural Cooling

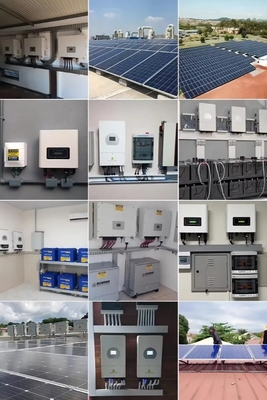

Application
Single Phase Solar System Deye PV Inverter 9KW 10KW Sun-9/10K-G02P1 with IP65 Rating 8
Single Phase Solar System Deye PV Inverter 9KW 10KW Sun-9/10K-G02P1 with IP65 Rating 9
Single Phase Solar System Deye PV Inverter 9KW 10KW Sun-9/10K-G02P1 with IP65 Rating 10

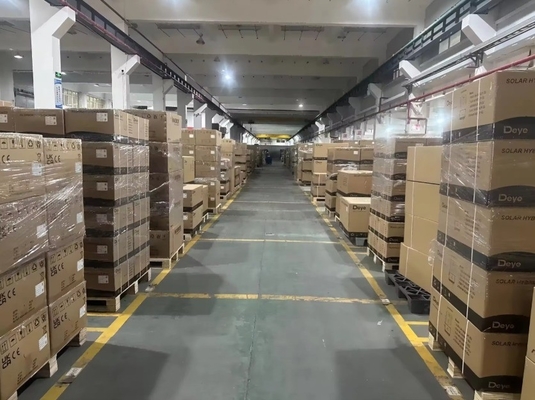

Packing & Delivery
Single Phase Solar System Deye PV Inverter 9KW 10KW Sun-9/10K-G02P1 with IP65 Rating 11
Single Phase Solar System Deye PV Inverter 9KW 10KW Sun-9/10K-G02P1 with IP65 Rating 12
Single Phase Solar System Deye PV Inverter 9KW 10KW Sun-9/10K-G02P1 with IP65 Rating 13
Single Phase Solar System Deye PV Inverter 9KW 10KW Sun-9/10K-G02P1 with IP65 Rating 14
Single Phase Solar System Deye PV Inverter 9KW 10KW Sun-9/10K-G02P1 with IP65 Rating 15
Single Phase Solar System Deye PV Inverter 9KW 10KW Sun-9/10K-G02P1 with IP65 Rating 16
Company Profile
Hefei Sunrise New Energy Co.,Ltd is a professional and fast growing company with more than 10 years experience in New energy field, located in Hefei city ,Anhui province .Our company is committed to high efficient and clean energy research and development and bring quick & professional service to our customers in all aspects of solar products and projects.
Being the top distributor of Tier 1 solar product brands including Longi, Sungrow, Trina, JA, Canadian, Growatt, Goodwe, Sunriseprovides not only solar panels and solar inverters,but also system integration for on-grid systems, off-grid systems, energy storage systems, etc.
Our products have been sold to many countries and regions in Europe, North America, the Middle East and South Africa,etc. also have got certificates of TUV,CE,CQC ,etc .
To complete the most intimate cooperation, We will provide customers with the best quality products & service,and sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation .
Single Phase Solar System Deye PV Inverter 9KW 10KW Sun-9/10K-G02P1 with IP65 Rating 17
Single Phase Solar System Deye PV Inverter 9KW 10KW Sun-9/10K-G02P1 with IP65 Rating 18
Single Phase Solar System Deye PV Inverter 9KW 10KW Sun-9/10K-G02P1 with IP65 Rating 19
Single Phase Solar System Deye PV Inverter 9KW 10KW Sun-9/10K-G02P1 with IP65 Rating 20
Certifications
Single Phase Solar System Deye PV Inverter 9KW 10KW Sun-9/10K-G02P1 with IP65 Rating 21
Single Phase Solar System Deye PV Inverter 9KW 10KW Sun-9/10K-G02P1 with IP65 Rating 22
FAQ
1. What is your main products?
Our main products including Solar Panel, Inverter, Battery,Solar System, Mounting System and other related Solar Power
Accessories;

2. Are you a factory or trading company ?
We are a professional Solar energy products manufacturer in China with own factory and the advanced production line ,can ensure superior supply capacity;

3.How can you guarantee your product quality ?
We will provide a pre-production sample before mass production, Each product will after several inspection procedures before shipment;

4.Could you print our company logo in nameplate and package ?
Yes ,we can customized your logo according to your design and request;

5. What if I don't have export experience ?
We have reliable forwarder agent which can ship items to you by Sea/Air/Express to your seaport or doorstep.Anyway, we will help you choose the most suitable shipping service.
Single Phase Solar System Deye PV Inverter 9KW 10KW Sun-9/10K-G02P1 with IP65 Rating 23
