Good price online

products details

Home > Products >
Solar PV Panel
>
685W-715W N-type Bifacial TOPCon Technology Dual Glass Monocrystalline Panel by CanadianSolar
All Category

Solar PV Panel

Sunrise

Canadian

JA

Jinko

Trina

Longi

Solar Battery

Stackable Solar Battery

Rack Mounted Solar Battery

Wall Mounted Solar Battery

Solar Inverter

Deye Solar Inverter

Goodwe Solar Inverter

Huawei Solar Inverter

Growatt Solar Inverter

PV system
Contact Us
Miss. Airey Chen
airey@hefeisunrise.com
+86-13966396843
wechat 13966396843
Contact Now
685W-715W N-type Bifacial TOPCon Technology Dual Glass Monocrystalline Panel by CanadianSolar
  • name
  • name
  • name
  • name
  • name
  • name

685W-715W N-type Bifacial TOPCon Technology Dual Glass Monocrystalline Panel by CanadianSolar

Brand Name: Canadian
Model Number: TOPBiHiKu7_CS7N-685-715wTB-AG
MOQ: 10000 watts
Price: $0.11/watts 10000-49999 watts
Detail Information
Product Description
Detail Information
Place of Origin:
Anhui, China
Cell Size:
210mmx210mm
Type:
Half Cell, Bifacial, Double-glass, N-TYPE, TOPCON
Panel Dimensions:
2384x1303x33 Mm
Panel Efficiency:
23.0%
Warranty:
12 Years
Solar Cell:
Monocrystalline Silicon Cells
Application:
Solar Power System
Product Name:
Canadian TOPBiHiKu7 TOPCon
Frame:
Anodized Aluminium Alloy
Weight:
37.8 Kg
Front Glass:
2.0 Mm High Transmission AR Coated Heat Strengthened Glass
Connector:
T6 Or MC4-EVO2 Or MC4-EVO2A
Junction Box:
IP68, 3 Bypass Diodes
Certificate:
ISO/IEC//EC/UL
No. Of Cells:
132 [2 X (11 X 6) ]
Product Description
Product description

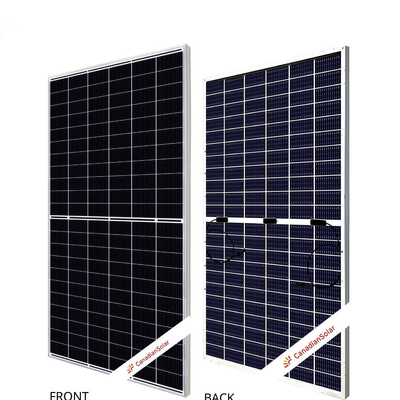

685W-715W N-type Bifacial TOPCon Technology Dual Glass Monocrystalline Panel by CanadianSolar 0

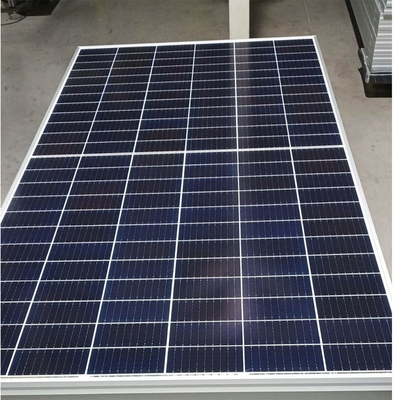

685W-715W N-type Bifacial TOPCon Technology Dual Glass Monocrystalline Panel by CanadianSolar 1
Product Paramenters
Mechanical Characteristics
Cell type
TOPCon cells
Cell Arrangement
132 [2 x (11 x 6) ]
Module Dimension
2384×1303×33mm
Module Weight
37.8 kg
Front Glass
2.0 mm (0.08 inches),High Transmission, AR Coated Heat Strengthened Glass
Back Glass
2.0 mm (0.08 inches), Heat Strengthened Glass (White Grid Glass)
Junction Box
IP68, 3 bypass diodes
Cable
4.0 mm² (IEC), 12 AWG (UL)
Cable Length
(Including Connector)
360 mm (14.2 in) (+) / 200 mm (7.9 in) (-) or customized length*
Connector
T6 or MC4-EVO2 or MC4-EVO2A
Per Pallet
33 pieces
Per Container (40' HQ)
594 pieces or 495 pieces (only for US & Canada)
685W-715W N-type Bifacial TOPCon Technology Dual Glass Monocrystalline Panel by CanadianSolar 2

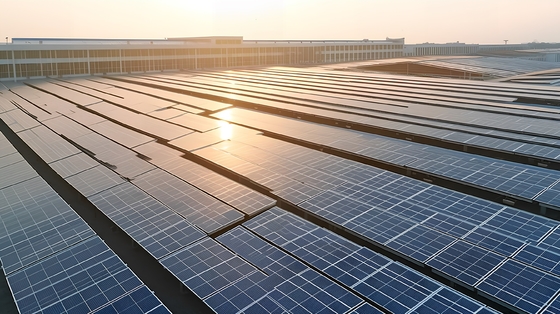

Application program
685W-715W N-type Bifacial TOPCon Technology Dual Glass Monocrystalline Panel by CanadianSolar 3
685W-715W N-type Bifacial TOPCon Technology Dual Glass Monocrystalline Panel by CanadianSolar 4
Certifications
685W-715W N-type Bifacial TOPCon Technology Dual Glass Monocrystalline Panel by CanadianSolar 5
Company Profile
Hefei Sunrise New Energy Co.,Ltd is a professional and fast growing company with more than 10 years experience in New energy field, located in Hefei city, Anhui province. Our company is committed to high efficient and clean energy research and development, and bring quick & professional service to our customers in all aspects of solar products and projects.

Being the top distributor of Tier 1 solar product brands including Longi, Sungrow, Trina, JA, Canadian, Growatt, Goodwe, Sunrise provides not only solar panels and solar inverters, but also system integration for on-grid systems, off-grid systems, energy storage systems, etc.

Our products have been sold to many countries and regions in Europe, North America, the Middle East and South Africa, etc. Aalso have got certificates of TUV ,CE, CQC, etc.

To complete the most intimate cooperation, we will provide customers with the best quality products & service, and sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation.

Our strength

1. 10 years experience of PV products, cheaper price.
2. We provide very fast delivery after order confirmed.
3. Professional technical team support.
4. One-stop photovoltaic product solutions to provide.
5. Complete certificates.
6. Provide ODM/OEM service.
7. Long warranty and after-sales service.

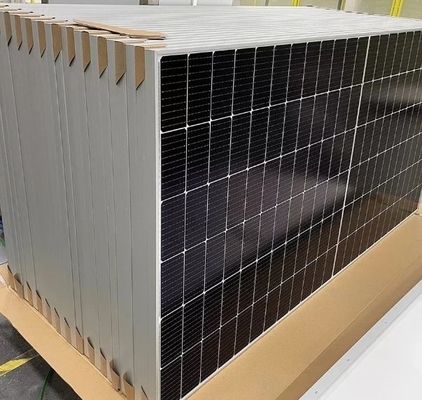

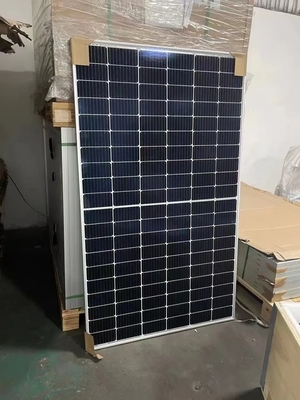

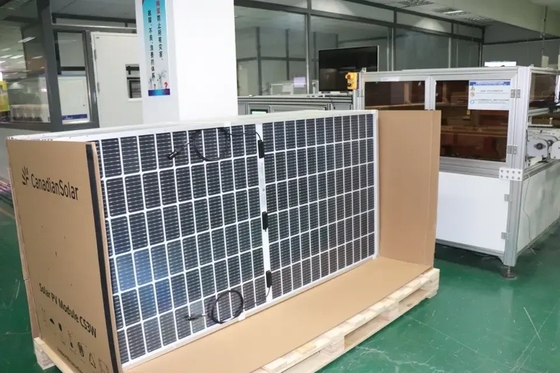

Packaging and Shipping
685W-715W N-type Bifacial TOPCon Technology Dual Glass Monocrystalline Panel by CanadianSolar 6
685W-715W N-type Bifacial TOPCon Technology Dual Glass Monocrystalline Panel by CanadianSolar 7
685W-715W N-type Bifacial TOPCon Technology Dual Glass Monocrystalline Panel by CanadianSolar 8
FAQ
Q1. What is your main products?
Our main products including Solar Panel, Inverter, Battery,Solar System, Mounting System and other related Solar Power Accessories.

Q2. Are you a factory or trading company?
We are a professional Solar energy products manufacturer in China with own factory and the advanced production line, can ensure superior supply capacity.

Q3. How can you guarantee your product quality?
We will provide a pre-production sample before mass production. Each product will after several inspection procedures before shipment.

Q4. Could you print our company logo in nameplate and package?
Yes ,we can customized your logo according to your design and request.

Q5. What if I don't have export experience?
We have reliable forwarder agent which can ship items to you by Sea/Air/Express to your seaport or doorstep.Anyway, we will help you choose the most suitable shipping service.
