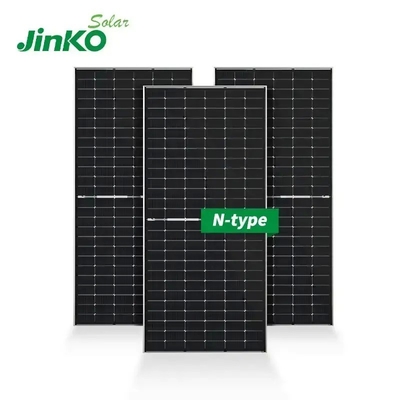

JKM610-635N-66HL4M-V 132-Cell N-TYPE Monocrystalline Solar Panel with by Jinkosolar
  • name
  • name
  • name
  • name
  • name
  • name

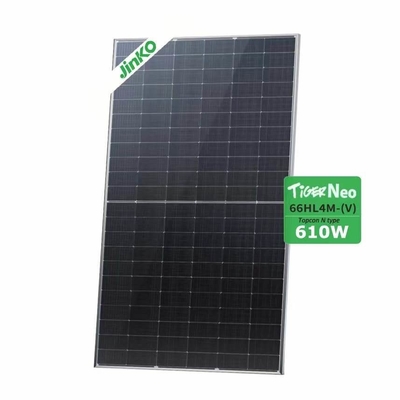

JKM610-635N-66HL4M-V 132-Cell N-TYPE Monocrystalline Solar Panel with by Jinkosolar

Brand Name: Jinkosolar
Model Number: JKM610-635N-66HL4M-(V)
MOQ: 10000 watts
Price: $0.11/watts 10000-49999 watts
Detail Information
Product Description
Detail Information
Place of Origin:
Anhui, China
Cell Size:
182mmx182mm
Type:
Half Cell, N-TYPE, Overlapping
Panel Dimensions:
2382x1134x35 Mm
Panel Efficiency:
23.51%
Warranty:
12 Years
Solar Cell:
N-type Mono-crystalline
Application:
Solar Power System
Product Name:
JINKO Tiger Neo
Frame:
Anodized Aluminium Alloy
Weight:
28.2 Kg
Front Glass:
3.2 Mm AR Coated High Trasmission Low Iron Tempered Glass
Connector:
JK03M/MC4/Others
Junction Box:
IP68 Rated
Cells Arrangement:
132 (66x2)
Keyword:
Solar Panel PV Module
Product Description
Product description

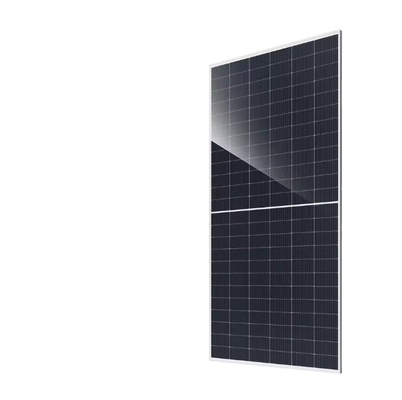

JKM610-635N-66HL4M-V 132-Cell N-TYPE Monocrystalline Solar Panel with by Jinkosolar 0
Product Paramenters
Mechanical Characteristics
Cell type
N-type Mono-crystalline
Cell Arrangement
132 (66×2)
Module Dimension
2382 ˣ 1134 ˣ 35 mm
Module Weight
28.2 kg
Front Glass
3.2 mm, AR Coated, High Transmission, Low Iron, Tempered Glass
Frame
Anodized Aluminium Alloy
Junction Box
IP68 rated
Cable
4.0 mm² (IEC)
Cable Length
(Including Connector)
400 mm (15.75 in) (+) / 200 mm (7.87 in)
Length can be customized
Connector
JK03M/MC4/Others
Per Pallet
31 pieces ( Pallet dimension: 2396 ˣ 1110 ˣ 1251 )
Per Container (40' HQ)
620 pieces

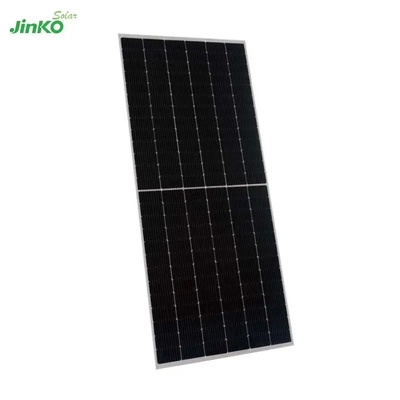

JKM610-635N-66HL4M-V 132-Cell N-TYPE Monocrystalline Solar Panel with by Jinkosolar 1

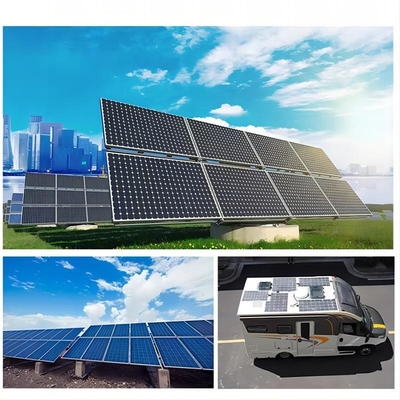

Application program
JKM610-635N-66HL4M-V 132-Cell N-TYPE Monocrystalline Solar Panel with by Jinkosolar 2
JKM610-635N-66HL4M-V 132-Cell N-TYPE Monocrystalline Solar Panel with by Jinkosolar 3
Certifications
JKM610-635N-66HL4M-V 132-Cell N-TYPE Monocrystalline Solar Panel with by Jinkosolar 4
Company Profile
Hefei Sunrise New Energy Co.,Ltd is a professional and fast growing company with more than 10 years experience in New energy field, located in Hefei city, Anhui province. Our company is committed to high efficient and clean energy research and development, and bring quick & professional service to our customers in all aspects of solar products and projects.

Being the top distributor of Tier 1 solar product brands including Longi, Sungrow, Trina, JA, Canadian, Growatt, Goodwe, Sunrise provides not only solar panels and solar inverters, but also system integration for on-grid systems, off-grid systems, energy storage systems, etc.

Our products have been sold to many countries and regions in Europe, North America, the Middle East and South Africa, etc. Aalso have got certificates of TUV ,CE, CQC, etc.

To complete the most intimate cooperation, we will provide customers with the best quality products & service, and sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation.

Our strength

1. 10 years experience of PV products, cheaper price.
2. We provide very fast delivery after order confirmed.
3. Professional technical team support.
4. One-stop photovoltaic product solutions to provide.
5. Complete certificates.
6. Provide ODM/OEM service.
7. Long warranty and after-sales service.

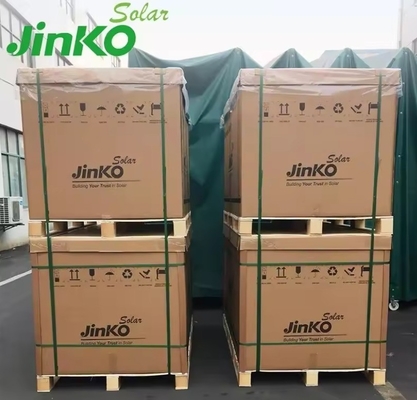

Packaging and Shipping
JKM610-635N-66HL4M-V 132-Cell N-TYPE Monocrystalline Solar Panel with by Jinkosolar 5
JKM610-635N-66HL4M-V 132-Cell N-TYPE Monocrystalline Solar Panel with by Jinkosolar 6
JKM610-635N-66HL4M-V 132-Cell N-TYPE Monocrystalline Solar Panel with by Jinkosolar 7
JKM610-635N-66HL4M-V 132-Cell N-TYPE Monocrystalline Solar Panel with by Jinkosolar 8
JKM610-635N-66HL4M-V 132-Cell N-TYPE Monocrystalline Solar Panel with by Jinkosolar 9
FAQ
Q1. What is your main products?
Our main products including Solar Panel, Inverter, Battery,Solar System, Mounting System and other related Solar Power Accessories.

Q2. Are you a factory or trading company?
We are a professional Solar energy products manufacturer in China with own factory and the advanced production line, can ensure superior supply capacity.

Q3. How can you guarantee your product quality?
We will provide a pre-production sample before mass production. Each product will after several inspection procedures before shipment.

Q4. Could you print our company logo in nameplate and package?
Yes ,we can customized your logo according to your design and request.

Q5. What if I don't have export experience?
We have reliable forwarder agent which can ship items to you by Sea/Air/Express to your seaport or doorstep.Anyway, we will help you choose the most suitable shipping service.
