Good price online

products details

Home > Products >
Solar PV Panel
>
Solar Panel TSM-DE19R Vertex Monocrystalline Silicon Cells 565 570 575 580 585W White Backsheet
All Category

Solar PV Panel

Sunrise

Canadian

JA

Jinko

Trina

Longi

Solar Battery

Stackable Solar Battery

Rack Mounted Solar Battery

Wall Mounted Solar Battery

Solar Inverter

Deye Solar Inverter

Goodwe Solar Inverter

Huawei Solar Inverter

Growatt Solar Inverter

PV system
Contact Us
Miss. Airey Chen
airey@hefeisunrise.com
+86-13966396843
wechat 13966396843
Contact Now
Solar Panel TSM-DE19R Vertex Monocrystalline Silicon Cells 565 570 575 580 585W White Backsheet
  • name
  • name
  • name
  • name
  • name
  • name

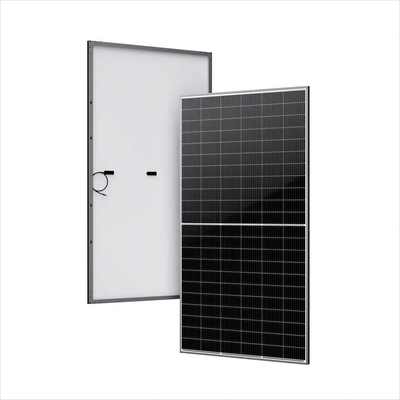

Solar Panel TSM-DE19R Vertex Monocrystalline Silicon Cells 565 570 575 580 585W White Backsheet

Brand Name: Trina
Model Number: TSM-DE19R
MOQ: 10000 watts
Price: $0.12/watts 10000-49999 watts
Detail Information
Product Description
Detail Information
Place of Origin:
Anhui, China
Cell Size:
182mmx182mm
Type:
Half Cell, N-TYPE, TOPCON, Overlapping
Panel Dimensions:
2382x1134x30 Mm
Panel Efficiency:
21.6%
Warranty:
12 Years
Solar Cell:
Monocrystalline Silicon Cells
Application:
Solar Power System
Product Name:
Trina Solar Vertex
Frame:
Anodized Aluminium Alloy
Weight:
28.8kg
Front Glass:
3.2 Mm High Transmission Tempered Glass
Connector:
MC4 EVO2 / TS4 PLUS / TS4*
Junction Box:
IP 68 Rated
Certificate:
ISO/IEC/TUV
Backsheet:
White

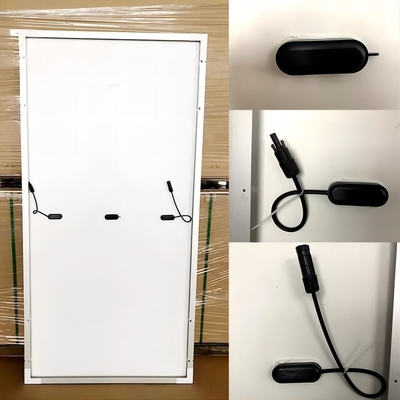

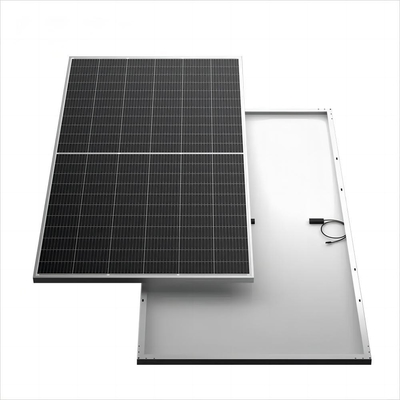

Product Description
Solar Panel TSM-DE19R Vertex Monocrystalline Silicon Cells 565 570 575 580 585W White Backsheet 0
Product description
Solar Panel TSM-DE19R Vertex Monocrystalline Silicon Cells 565 570 575 580 585W White Backsheet 1
Solar Panel TSM-DE19R Vertex Monocrystalline Silicon Cells 565 570 575 580 585W White Backsheet 2
Product Paramenters
Solar Panel TSM-DE19R Vertex Monocrystalline Silicon Cells 565 570 575 580 585W White Backsheet 3
Mechanical Characteristics
Cell type
BACKSHEET Monocrystalline Module
Number of half Cell
132cells
Module Dimension
2382×1134×30mm
Module Weight
28.8kg
Front Glass
3.2 mm (0.13 inches),High Transmission, AR Coated Heat Strengthened Glass
Junction Box
IP68 Rated
Output wire
Photovoltaic Technology Cable 4.0mm2,Portrait: 350/280 mm
STC
Module Number
TSM-DE19R 565W~585W
Maximum Power(Pmax)
565Wp
570Wp
575Wp
580Wp
585Wp
Optimum Operating Voltage(Vmp)
38.3V
38.5V
38.8V
39.0V
39.3V
Optimum Operating Current(Imp)
14.76A
14.79A
14.83A
14.86A
14.90A
Open-circuit Voltag(Voc)
45.6V
45.8V
46.1V
46.3V
46.6V
Short-circuit Voltage(Isc)
15.81A
15.85A
15.90A
15.94A
15.99A
Module Efficiency(%)
20.9%
21.1%
21.3%
21.5%
21.6%
Operating Temperature(℃）
-40℃~+85℃
Maximum System Voltage
1500VDC (IEC)
Maximum Rated Fuse Current
30A
Output Power Tolerance
0~+5%
Pmax Temperature Coefficient
-0.34%/℃
Voc Temperature Coefficient
-0.25%/℃
Isc Temperature Coefficient
0.04%/℃
NOCT
43℃±2℃

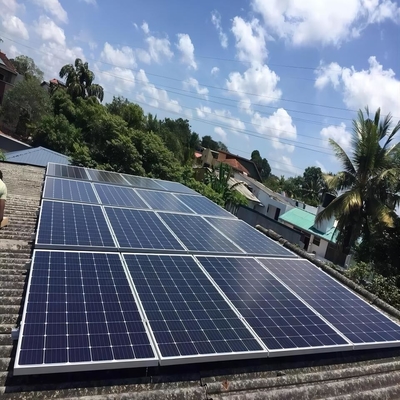

Application program
Solar Panel TSM-DE19R Vertex Monocrystalline Silicon Cells 565 570 575 580 585W White Backsheet 4
Solar Panel TSM-DE19R Vertex Monocrystalline Silicon Cells 565 570 575 580 585W White Backsheet 5
Solar Panel TSM-DE19R Vertex Monocrystalline Silicon Cells 565 570 575 580 585W White Backsheet 6
Certifications
Solar Panel TSM-DE19R Vertex Monocrystalline Silicon Cells 565 570 575 580 585W White Backsheet 7

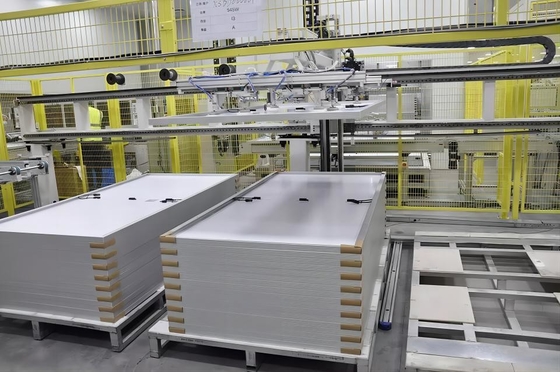

Company Profile
Hefei Sunrise New Energy Co.,Ltd is a professional and fast growing company with more than 10 years experience in New energy field, located in Hefei city, Anhui province. Our company is committed to high efficient and clean energy research and development, and bring quick & professional service to our customers in all aspects of solar products and projects.

Being the top distributor of Tier 1 solar product brands including Longi, Sungrow, Trina, JA, Canadian, Growatt, Goodwe, Sunrise provides not only solar panels and solar inverters, but also system integration for on-grid systems, off-grid systems, energy storage systems, etc.

Our products have been sold to many countries and regions in Europe, North America, the Middle East and South Africa, etc. Aalso have got certificates of TUV ,CE, CQC, etc.

To complete the most intimate cooperation, we will provide customers with the best quality products & service, and sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation.

Our strength

1. 10 years experience of PV products, cheaper price.
2. We provide very fast delivery after order confirmed.
3. Professional technical team support.
4. One-stop photovoltaic product solutions to provide.
5. Complete certificates.
6. Provide ODM/OEM service.
7. Long warranty and after-sales service.

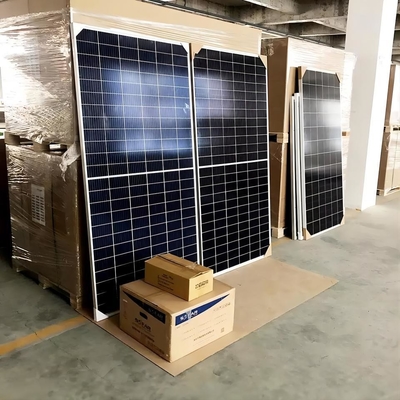

Packaging and Shipping
Solar Panel TSM-DE19R Vertex Monocrystalline Silicon Cells 565 570 575 580 585W White Backsheet 8
Solar Panel TSM-DE19R Vertex Monocrystalline Silicon Cells 565 570 575 580 585W White Backsheet 9
Solar Panel TSM-DE19R Vertex Monocrystalline Silicon Cells 565 570 575 580 585W White Backsheet 10
Solar Panel TSM-DE19R Vertex Monocrystalline Silicon Cells 565 570 575 580 585W White Backsheet 11
FAQ
Q1. What is your main products?
Our main products including Solar Panel, Inverter, Battery,Solar System, Mounting System and other related Solar Power Accessories.

Q2. Are you a factory or trading company?
We are a professional Solar energy products manufacturer in China with own factory and the advanced production line, can ensure superior supply capacity.

Q3. How can you guarantee your product quality?
We will provide a pre-production sample before mass production. Each product will after several inspection procedures before shipment.

Q4. Could you print our company logo in nameplate and package?
Yes ,we can customized your logo according to your design and request.

Q5. What if I don't have export experience?
We have reliable forwarder agent which can ship items to you by Sea/Air/Express to your seaport or doorstep.Anyway, we will help you choose the most suitable shipping service.
