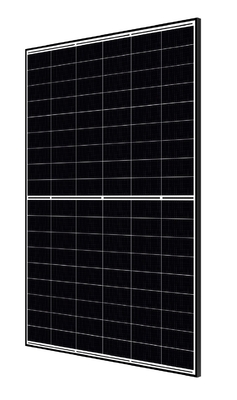

Solar Panel TOPBiHiKu6 CS6.1-60TB-490W-515W Monocrystalline Module with 182mmx182mm Cells
  • name
  • name
  • name
  • name
  • name
  • name

Solar Panel TOPBiHiKu6 CS6.1-60TB-490W-515W Monocrystalline Module with 182mmx182mm Cells

Brand Name: Canadian
Model Number: TOPBiHiKu6_CS6.1-60TB-490w-515w
MOQ: 10000 watts
Price: $0.11/watts 10000-49999 watts
Detail Information
Product Description
Detail Information
Place of Origin:
Anhui, China
Cell Size:
182mmx182mm
Type:
Half Cell, Bifacial, Double-glass, N-TYPE, TOPCON
Panel Dimensions:
1994x1134x30 Mm
Panel Efficiency:
22.8%
Warranty:
25 Years
Solar Cell:
Monocrystalline Silicon Cells
Application:
Solar Power System
Product Name:
Canadian TOPBiHiKu6
Frame:
Anodized Aluminium Alloy
Weight:
28.4 Kg
Front Glass:
2.0 Mm High Transmission AR Coated Heat Strengthened Glass
Connector:
T6 Or MC4-EVO2 Or MC4-EVO2A
Junction Box:
IP68, 3 Bypass Diodes
Certificate:
ISO/IEC//EC/UL
No. Of Cells:
120 [2 X (10 X 6) ]
Product Description
Product description

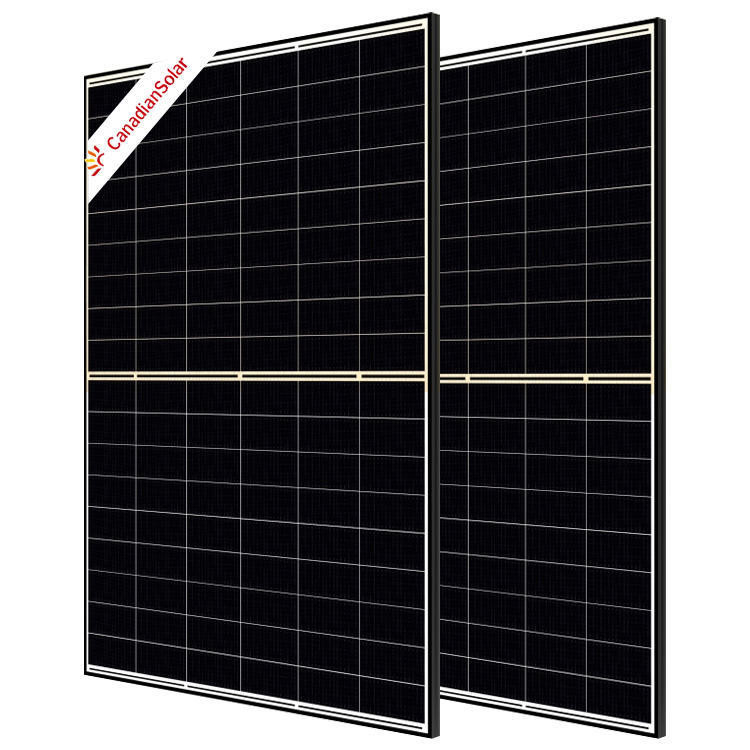

Solar Panel TOPBiHiKu6 CS6.1-60TB-490W-515W Monocrystalline Module with 182mmx182mm Cells 0
Product Paramenters
Mechanical Characteristics
Cell type
N-Type Bifacial TOPCon cells
Cell Arrangement
120 [2 x (10 x 6) ]
Module Dimension
1994 ˣ 1134 ˣ 30 mm
Module Weight
28.4 kg
Front Glass
2.0 mm (0.08 inches),High Transmission, AR Coated Heat Strengthened Glass
Back Glass
2.0 mm (0.08 inches), Heat Strengthened Glass (White Grid Glass)
Junction Box
IP68, 3 bypass diodes
Cable
4.0 mm² (IEC), 12 AWG (UL)
Cable Length
(Including Connector)
300 mm (11.8 in) (+) / 200 mm (7.9 in) (-) or customized length*
Connector
T6 or MC4-EVO2 or MC4-EVO2A
Per Pallet
35 pieces
Per Container (40' HQ)
770 pieces
Solar Panel TOPBiHiKu6 CS6.1-60TB-490W-515W Monocrystalline Module with 182mmx182mm Cells 1

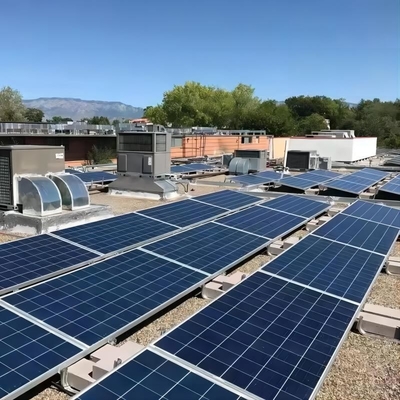

Application program
Solar Panel TOPBiHiKu6 CS6.1-60TB-490W-515W Monocrystalline Module with 182mmx182mm Cells 2
Solar Panel TOPBiHiKu6 CS6.1-60TB-490W-515W Monocrystalline Module with 182mmx182mm Cells 3
Certifications
Solar Panel TOPBiHiKu6 CS6.1-60TB-490W-515W Monocrystalline Module with 182mmx182mm Cells 4
Company Profile
Hefei Sunrise New Energy Co.,Ltd is a professional and fast growing company with more than 10 years experience in New energy field, located in Hefei city, Anhui province. Our company is committed to high efficient and clean energy research and development, and bring quick & professional service to our customers in all aspects of solar products and projects.

Being the top distributor of Tier 1 solar product brands including Longi, Sungrow, Trina, JA, Canadian, Growatt, Goodwe, Sunrise provides not only solar panels and solar inverters, but also system integration for on-grid systems, off-grid systems, energy storage systems, etc.

Our products have been sold to many countries and regions in Europe, North America, the Middle East and South Africa, etc. Aalso have got certificates of TUV ,CE, CQC, etc.

To complete the most intimate cooperation, we will provide customers with the best quality products & service, and sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation.

Our strength

1. 10 years experience of PV products, cheaper price.
2. We provide very fast delivery after order confirmed.
3. Professional technical team support.
4. One-stop photovoltaic product solutions to provide.
5. Complete certificates.
6. Provide ODM/OEM service.
7. Long warranty and after-sales service.
Packaging and Shipping
Solar Panel TOPBiHiKu6 CS6.1-60TB-490W-515W Monocrystalline Module with 182mmx182mm Cells 5
Solar Panel TOPBiHiKu6 CS6.1-60TB-490W-515W Monocrystalline Module with 182mmx182mm Cells 6
Solar Panel TOPBiHiKu6 CS6.1-60TB-490W-515W Monocrystalline Module with 182mmx182mm Cells 7
FAQ
Q1. What is your main products?
Our main products including Solar Panel, Inverter, Battery,Solar System, Mounting System and other related Solar Power Accessories.

Q2. Are you a factory or trading company?
We are a professional Solar energy products manufacturer in China with own factory and the advanced production line, can ensure superior supply capacity.

Q3. How can you guarantee your product quality?
We will provide a pre-production sample before mass production. Each product will after several inspection procedures before shipment.

Q4. Could you print our company logo in nameplate and package?
Yes ,we can customized your logo according to your design and request.

Q5. What if I don't have export experience?
We have reliable forwarder agent which can ship items to you by Sea/Air/Express to your seaport or doorstep.Anyway, we will help you choose the most suitable shipping service.
