150 Cells Bifacial Dual Glass Photovoltaic Panel Trinasolar TSM-DEG18 480 485 490 495 500 505W
  • name
  • name
  • name
  • name
  • name
  • name

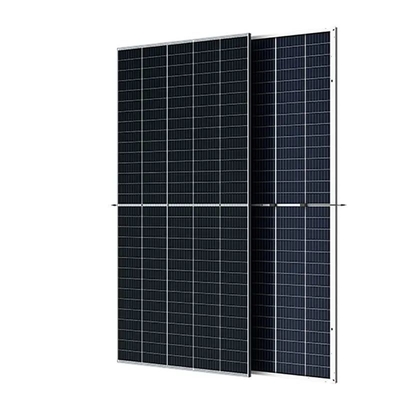

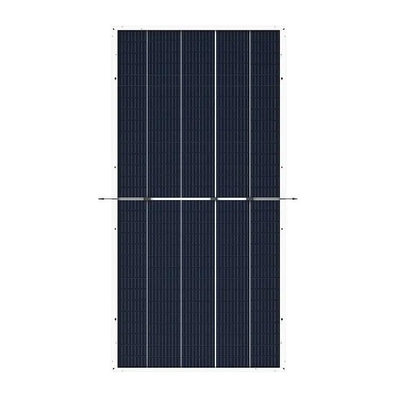

150 Cells Bifacial Dual Glass Photovoltaic Panel Trinasolar TSM-DEG18 480 485 490 495 500 505W

Brand Name: Trina
Model Number: TSM-DEG18MC.20(II)
MOQ: 10000 watts
Price: $0.12/watts 10000-49999 watts
Detail Information
Product Description
Detail Information
Place of Origin:
Anhui, China
Cell Size:
210mmx210mm
Type:
Half Cell, Bifacial, Double-glass
Panel Dimensions:
2187x1102x35 Mm
Panel Efficiency:
21.0%
Warranty:
12 Years
Solar Cell:
Monocrystalline Silicon Cells
Application:
Solar Power System
Product Name:
Trina Solar Vertex
Frame:
Anodized Aluminium Alloy
Weight:
30.1 Kg
Front Glass:
2.0 Mm High Transmission AR Coated Heat Strengthened Glass
Connector:
MC4 EVO2 / TS4*
Junction Box:
IP 68 Rated
Certificate:
ISO/IEC/TUV
No. Of Cells:
150 Cells
Product Description
150 Cells Bifacial Dual Glass Photovoltaic Panel Trinasolar TSM-DEG18 480 485 490 495 500 505W 0
Product description
150 Cells Bifacial Dual Glass Photovoltaic Panel Trinasolar TSM-DEG18 480 485 490 495 500 505W 1
150 Cells Bifacial Dual Glass Photovoltaic Panel Trinasolar TSM-DEG18 480 485 490 495 500 505W 2
Product Paramenters
Mechanical Characteristics
Cell type
Monocrystalline
Number of half Cell
150 cells
Module Dimension
2187×1102×35 mm
Module Weight
30.1kg
Front Glass
2.0 mm (0.08 inches),High Transmission, AR Coated Heat Strengthened Glass
Back Glass
2.0 mm (0.08 inches), Heat Strengthened Glass (White Grid Glass)
Junction Box
IP68 Rated
Output wire
Photovoltaic Technology Cable 4.0mm2 (0.006 inches2)
Portrait: 280/280 mm(11.02/11.02 inches)
Length can be customized
150 Cells Bifacial Dual Glass Photovoltaic Panel Trinasolar TSM-DEG18 480 485 490 495 500 505W 3

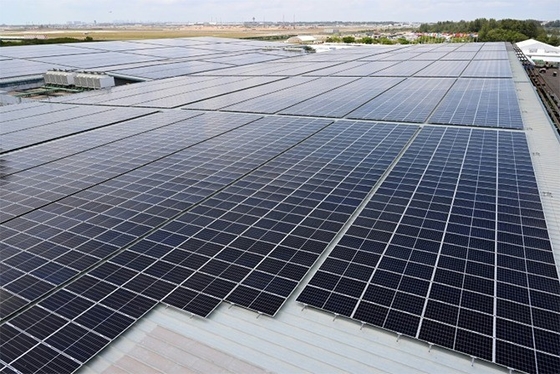

Application program
150 Cells Bifacial Dual Glass Photovoltaic Panel Trinasolar TSM-DEG18 480 485 490 495 500 505W 4
150 Cells Bifacial Dual Glass Photovoltaic Panel Trinasolar TSM-DEG18 480 485 490 495 500 505W 5
150 Cells Bifacial Dual Glass Photovoltaic Panel Trinasolar TSM-DEG18 480 485 490 495 500 505W 6
Certifications
150 Cells Bifacial Dual Glass Photovoltaic Panel Trinasolar TSM-DEG18 480 485 490 495 500 505W 7

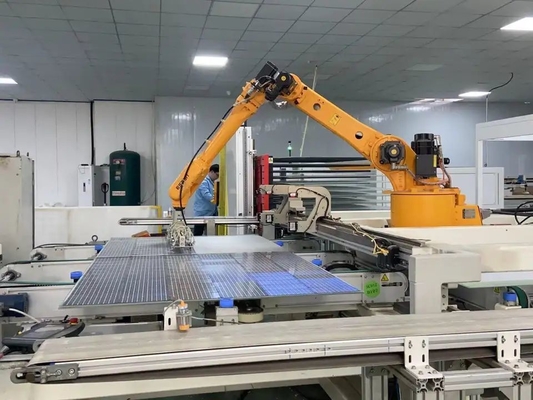

Company Profile
Hefei Sunrise New Energy Co.,Ltd is a professional and fast growing company with more than 10 years experience in New energy field, located in Hefei city, Anhui province. Our company is committed to high efficient and clean energy research and development, and bring quick & professional service to our customers in all aspects of solar products and projects.

Being the top distributor of Tier 1 solar product brands including Longi, Sungrow, Trina, JA, Canadian, Growatt, Goodwe, Sunrise provides not only solar panels and solar inverters, but also system integration for on-grid systems, off-grid systems, energy storage systems, etc.

Our products have been sold to many countries and regions in Europe, North America, the Middle East and South Africa, etc. Aalso have got certificates of TUV ,CE, CQC, etc.

To complete the most intimate cooperation, we will provide customers with the best quality products & service, and sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation.

Our strength

1. 10 years experience of PV products, cheaper price.
2. We provide very fast delivery after order confirmed.
3. Professional technical team support.
4. One-stop photovoltaic product solutions to provide.
5. Complete certificates.
6. Provide ODM/OEM service.
7. Long warranty and after-sales service.
Packaging and Shipping
150 Cells Bifacial Dual Glass Photovoltaic Panel Trinasolar TSM-DEG18 480 485 490 495 500 505W 8
150 Cells Bifacial Dual Glass Photovoltaic Panel Trinasolar TSM-DEG18 480 485 490 495 500 505W 9
150 Cells Bifacial Dual Glass Photovoltaic Panel Trinasolar TSM-DEG18 480 485 490 495 500 505W 10
150 Cells Bifacial Dual Glass Photovoltaic Panel Trinasolar TSM-DEG18 480 485 490 495 500 505W 11
FAQ
Q1. What is your main products?
Our main products including Solar Panel, Inverter, Battery,Solar System, Mounting System and other related Solar Power Accessories.

Q2. Are you a factory or trading company?
We are a professional Solar energy products manufacturer in China with own factory and the advanced production line, can ensure superior supply capacity.

Q3. How can you guarantee your product quality?
We will provide a pre-production sample before mass production. Each product will after several inspection procedures before shipment.

Q4. Could you print our company logo in nameplate and package?
Yes ,we can customized your logo according to your design and request.

Q5. What if I don't have export experience?
We have reliable forwarder agent which can ship items to you by Sea/Air/Express to your seaport or doorstep.Anyway, we will help you choose the most suitable shipping service.
