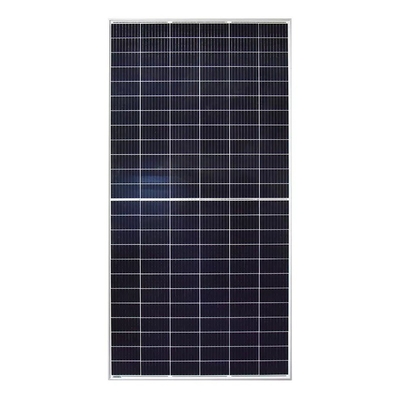

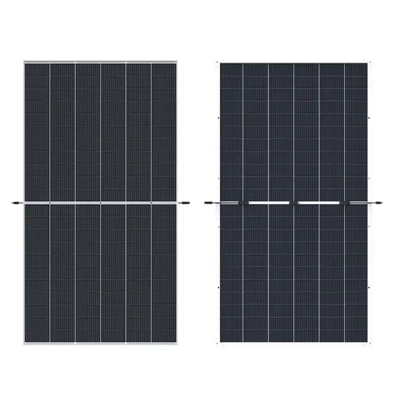

182mmx182mm Cell Size Bifacial Double Glass Photovoltaic Panel 625W N-type iTOPCon

Brand Name: Trina
Model Number: TSM-NEG19RC.20
MOQ: 10000 watts
Price: $0.12/watts 10000-49999 watts
Detail Information
Product Description
Detail Information
Place of Origin:
Anhui, China
Cell Size:
182mmx182mm
Type:
Half Cell, Bifacial, Double-glass, N-TYPE, TOPCON
Panel Dimensions:
2382x1134x30 Mm
Panel Efficiency:
23.0%
Warranty:
25 Years
Solar Cell:
Monocrystalline Silicon Cells
Application:
Solar Power System
Product Name:
Trina Solar Vertex N 620W
Frame:
Anodized Aluminium Alloy
Weight:
33.7kg
Front Glass:
2.0 High Transmission AR Coated Heat Strengthened Glass
Connector:
MC4 EVO2 / TS4 PLUS / TS4*
Junction Box:
IP 68 Rated
Certificate:
TUV IEC CE
No. Of Cells:
132 Cells
Product Description
182mmx182mm Cell Size Bifacial Double Glass Photovoltaic Panel 625W N-type iTOPCon 0
Product description
182mmx182mm Cell Size Bifacial Double Glass Photovoltaic Panel 625W N-type iTOPCon 1
182mmx182mm Cell Size Bifacial Double Glass Photovoltaic Panel 625W N-type iTOPCon 2
Product Paramenters
182mmx182mm Cell Size Bifacial Double Glass Photovoltaic Panel 625W N-type iTOPCon 3
Mechanical Characteristics
Cell type
N-Type Monocrystalline silicon
Number of half Cell
132cells
Module Dimension
2382×1134×30mm
Module Weight
33.7kg
Front Glass
2.0 mm (0.08 inches),High Transmission, AR Coated Heat Strengthened Glass
Back Glass
2.0 mm (0.08 inches), Heat Strengthened Glass (White Grid Glass)
Junction Box
IP68 Rated
Output wire
Photovoltaic Technology Cable 4.0mm2,Portrait: 350/280 mm
STC
Module Number
TSM-NEG19RC.20 590W~620W
Maximum Power(Pmax)
600Wp
605Wp
610Wp
615Wp
620Wp
Optimum Operating Voltage(Vmp)
40.3V
40.5V
40.8V
41.1V
41.4V
Optimum Operating Current(Imp)
14.91A
14.94A
14.96A
14.98A
14.99A
Open-circuit Voltag(Voc)
48.4V
48.7V
49V
49.3V
49.6V
Short-circuit Voltage(Isc)
15.8A
15.83A
15.86A
15.89A
15.91A
Module Efficiency(%)
22.2%
22.4%
22.6%
22.8%
23%
Operating Temperature(℃）
-40℃~+85℃
Maximum System Voltage
1500VDC (IEC)
Maximum Rated Fuse Current
35A
Output Power Tolerance
0~+5%
Pmax Temperature Coefficient
-0.29%/℃
Voc Temperature Coefficient
-0.24%/℃
Isc Temperature Coefficient
0.04%/℃
NOCT
43℃±2℃

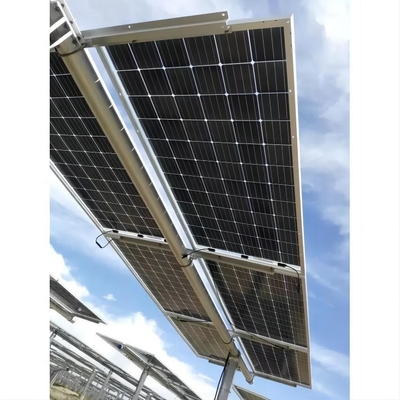

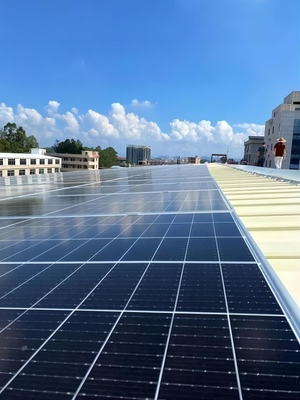

Application program
182mmx182mm Cell Size Bifacial Double Glass Photovoltaic Panel 625W N-type iTOPCon 4
182mmx182mm Cell Size Bifacial Double Glass Photovoltaic Panel 625W N-type iTOPCon 5
182mmx182mm Cell Size Bifacial Double Glass Photovoltaic Panel 625W N-type iTOPCon 6
Certifications
182mmx182mm Cell Size Bifacial Double Glass Photovoltaic Panel 625W N-type iTOPCon 7
Company Profile
Hefei Sunrise New Energy Co.,Ltd is a professional and fast growing company with more than 10 years experience in New energy field, located in Hefei city, Anhui province. Our company is committed to high efficient and clean energy research and development, and bring quick & professional service to our customers in all aspects of solar products and projects.

Being the top distributor of Tier 1 solar product brands including Longi, Sungrow, Trina, JA, Canadian, Growatt, Goodwe, Sunrise provides not only solar panels and solar inverters, but also system integration for on-grid systems, off-grid systems, energy storage systems, etc.

Our products have been sold to many countries and regions in Europe, North America, the Middle East and South Africa, etc. Aalso have got certificates of TUV ,CE, CQC, etc.

To complete the most intimate cooperation, we will provide customers with the best quality products & service, and sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation.

Our strength

1. 10 years experience of PV products, cheaper price.
2. We provide very fast delivery after order confirmed.
3. Professional technical team support.
4. One-stop photovoltaic product solutions to provide.
5. Complete certificates.
6. Provide ODM/OEM service.
7. Long warranty and after-sales service.

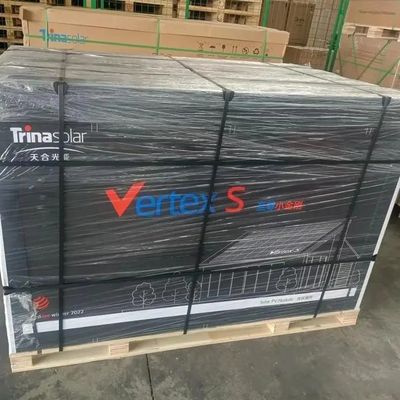

Packaging and Shipping
182mmx182mm Cell Size Bifacial Double Glass Photovoltaic Panel 625W N-type iTOPCon 8
182mmx182mm Cell Size Bifacial Double Glass Photovoltaic Panel 625W N-type iTOPCon 9
182mmx182mm Cell Size Bifacial Double Glass Photovoltaic Panel 625W N-type iTOPCon 10
182mmx182mm Cell Size Bifacial Double Glass Photovoltaic Panel 625W N-type iTOPCon 11
FAQ
Q1. What is your main products?
Our main products including Solar Panel, Inverter, Battery,Solar System, Mounting System and other related Solar Power Accessories.

Q2. Are you a factory or trading company?
We are a professional Solar energy products manufacturer in China with own factory and the advanced production line, can ensure superior supply capacity.

Q3. How can you guarantee your product quality?
We will provide a pre-production sample before mass production. Each product will after several inspection procedures before shipment.

Q4. Could you print our company logo in nameplate and package?
Yes ,we can customized your logo according to your design and request.

Q5. What if I don't have export experience?
We have reliable forwarder agent which can ship items to you by Sea/Air/Express to your seaport or doorstep.Anyway, we will help you choose the most suitable shipping service.
