Lightweight N-type Photovoltaic Module 570W-595W with Monocrystalline Silicon Cells
  • name
  • name
  • name
  • name
  • name
  • name

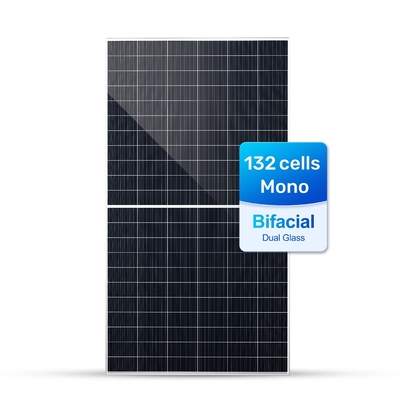

Lightweight N-type Photovoltaic Module 570W-595W with Monocrystalline Silicon Cells

Brand Name: JASOLAR
Model Number: JAM66D42MB 570-595W
MOQ: 10000 watts
Price: $0.11/watts 10000-49999 watts
Detail Information
Product Description
Detail Information
Place of Origin:
Anhui, China
Cell Size:
182mmx182mm
Type:
Half Cell, Bifacial, Double-glass, N-TYPE
Panel Dimensions:
2278 X 1134 X 30 Mm
Panel Efficiency:
23.0%
Warranty:
25 Years
Solar Cell:
Monocrystalline Silicon Cells
Application:
Solar Power System
Product Name:
JASOLAR DeepBlue 4.0
Frame:
Anodized Aluminium Alloy
Weight:
31.8 Kg
Front Glass:
2.0 Mm
Connector:
QC4.10-351/MC4-EVO2A
Junction Box:
IP68, 3 Diodes
Certificate:
ISO/IEC//EC/UL
OEM Order:
Acceptable
Product Description
Product description
Lightweight N-type Photovoltaic Module 570W-595W with Monocrystalline Silicon Cells 0
Product Paramenters
Mechanical Characteristics
Cell type
N-type Monocrystalline cells
Cells Arrangement
132 (6 x 22)
Module Dimension
2278×1134×30 mm
Module Weight
31.8 kg
Front Glass / Back Glass
2.0mm / 2.0mm
Junction Box
IP68, 3 diodes
Cable
4.0 mm² (IEC), 12 AWG (UL)
Cable Length
(Including Connector)
Portrait: 300mm(+)/400mm(-);
Landscape: 1300mm(+)/1300mm(-)
Connector
QC4.10-351/MC4-EVO2A
Lightweight N-type Photovoltaic Module 570W-595W with Monocrystalline Silicon Cells 1

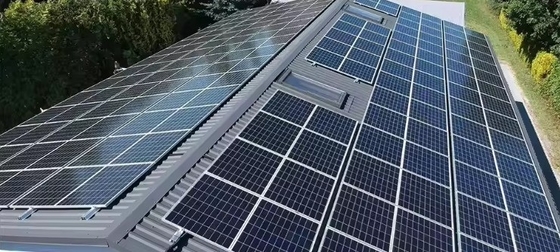

Application program
Lightweight N-type Photovoltaic Module 570W-595W with Monocrystalline Silicon Cells 2
Lightweight N-type Photovoltaic Module 570W-595W with Monocrystalline Silicon Cells 3
Lightweight N-type Photovoltaic Module 570W-595W with Monocrystalline Silicon Cells 4
Lightweight N-type Photovoltaic Module 570W-595W with Monocrystalline Silicon Cells 5
Certifications
Lightweight N-type Photovoltaic Module 570W-595W with Monocrystalline Silicon Cells 6

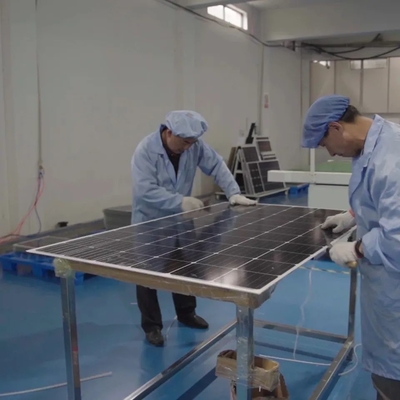

Company Profile
Hefei Sunrise New Energy Co.,Ltd is a professional and fast growing company with more than 10 years experience in New energy field, located in Hefei city, Anhui province. Our company is committed to high efficient and clean energy research and development, and bring quick & professional service to our customers in all aspects of solar products and projects.

Being the top distributor of Tier 1 solar product brands including Longi, Sungrow, Trina, JA, Canadian, Growatt, Goodwe, Sunrise provides not only solar panels and solar inverters, but also system integration for on-grid systems, off-grid systems, energy storage systems, etc.

Our products have been sold to many countries and regions in Europe, North America, the Middle East and South Africa, etc. Aalso have got certificates of TUV ,CE, CQC, etc.

To complete the most intimate cooperation, we will provide customers with the best quality products & service, and sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation.

Our strength

1. 10 years experience of PV products, cheaper price.
2. We provide very fast delivery after order confirmed.
3. Professional technical team support.
4. One-stop photovoltaic product solutions to provide.
5. Complete certificates.
6. Provide ODM/OEM service.
7. Long warranty and after-sales service.

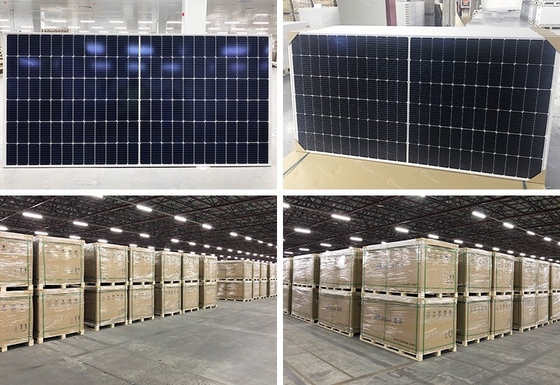

Packaging and Shipping
Lightweight N-type Photovoltaic Module 570W-595W with Monocrystalline Silicon Cells 7
Lightweight N-type Photovoltaic Module 570W-595W with Monocrystalline Silicon Cells 8
Lightweight N-type Photovoltaic Module 570W-595W with Monocrystalline Silicon Cells 9
Lightweight N-type Photovoltaic Module 570W-595W with Monocrystalline Silicon Cells 10
Lightweight N-type Photovoltaic Module 570W-595W with Monocrystalline Silicon Cells 11
FAQ
Q1. What is your main products?
Our main products including Solar Panel, Inverter, Battery,Solar System, Mounting System and other related Solar Power Accessories.

Q2. Are you a factory or trading company?
We are a professional Solar energy products manufacturer in China with own factory and the advanced production line, can ensure superior supply capacity.

Q3. How can you guarantee your product quality?
We will provide a pre-production sample before mass production. Each product will after several inspection procedures before shipment.

Q4. Could you print our company logo in nameplate and package?
Yes ,we can customized your logo according to your design and request.

Q5. What if I don't have export experience?
We have reliable forwarder agent which can ship items to you by Sea/Air/Express to your seaport or doorstep.Anyway, we will help you choose the most suitable shipping service.
