Double Glass Bifacial PV Panel 640W 645W 650W 655W 660W 665W for Solar Energy System
  • name
  • name
  • name
  • name
  • name
  • name

Double Glass Bifacial PV Panel 640W 645W 650W 655W 660W 665W for Solar Energy System

Brand Name: Trina
Model Number: TSM-DEG21C.20
MOQ: 10000 watts
Price: $0.12/watts 10000-49999 watts
Detail Information
Product Description
Detail Information
Place of Origin:
Anhui, China
Cell Size:
210mmx210mm
Type:
PERC, Half Cell, Bifacial, Double-glass
Panel Dimensions:
2384x1303x35 Mm
Panel Efficiency:
21.4%
Warranty:
12 Years
Solar Cell:
Monocrystalline Silicon Cells
Application:
Solar Power System
Product Name:
Trina Solar Vertex 665w
Frame:
Anodized Aluminium Alloy
Weight:
38.7 Kg
Front Glass:
2.0 Mm High Transmission AR Coated Heat Strengthened Glass
Connector:
MC4 EVO2 / TS4 PLUS / TS4*
Junction Box:
IP 68 Rated
Product Description
Product description
Double Glass Bifacial PV Panel 640W 645W 650W 655W 660W 665W for Solar Energy System 0
Double Glass Bifacial PV Panel 640W 645W 650W 655W 660W 665W for Solar Energy System 1
Double Glass Bifacial PV Panel 640W 645W 650W 655W 660W 665W for Solar Energy System 2
Double Glass Bifacial PV Panel 640W 645W 650W 655W 660W 665W for Solar Energy System 3
Product Paramenters
Mechanical Characteristics
Cell type
Monocrystalline silicon cell 210mm PERC
Number of half Cell
132 cells
Module Dimension
2384×1303×35 mm
Module Weight
38.7 kg
Front Glass
2.0 mm (0.08 inches),High Transmission, AR Coated Heat Strengthened Glass
Back Glass
2.0 mm (0.08 inches), Heat Strengthened Glass (White Grid Glass)
Junction Box
IP68 Rated
Output wire
Photovoltaic Technology Cable 4.0mm2,Portrait: 350/280 mm
STC
Module Number
TSM-DEG21C.20 640W~665W
Maximum Power(Pmax)
645Wp
650Wp
655Wp
660Wp
665Wp
Optimum Operating Voltage(Vmp)
37.5V
37.7V
37.9V
38.1V
38.3V
Optimum Operating Current(Imp)
17.23A
17.27A
17.31A
17.35A
17.39A
Open-circuit Voltag(Voc)
45.3V
45.5V
45.7V
45.9V
46.1V
Short-circuit Voltage(Isc)
18.31A
18.35A
18.40A
18.45A
18.50A
Module Efficiency(%)
20.8%
20.9%
21.1%
21.2%
21.4%
Operating Temperature(℃）
-40℃~+85℃
Maximum System Voltage
1500VDC (IEC)
Maximum Rated Fuse Current
35A
Output Power Tolerance
0~+3%
Pmax Temperature Coefficient
-0.34%/℃
Voc Temperature Coefficient
-0.25%/℃
Isc Temperature Coefficient
0.04%/℃
NOCT
43℃±2℃

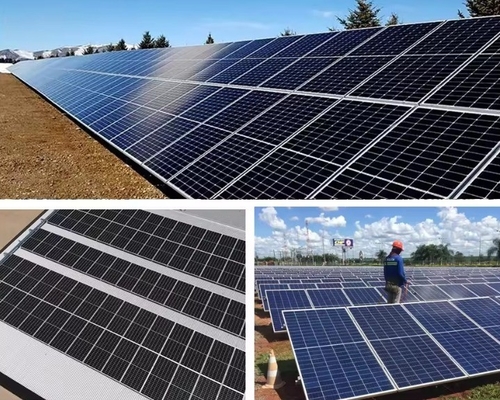

Application program
Double Glass Bifacial PV Panel 640W 645W 650W 655W 660W 665W for Solar Energy System 4
Double Glass Bifacial PV Panel 640W 645W 650W 655W 660W 665W for Solar Energy System 5

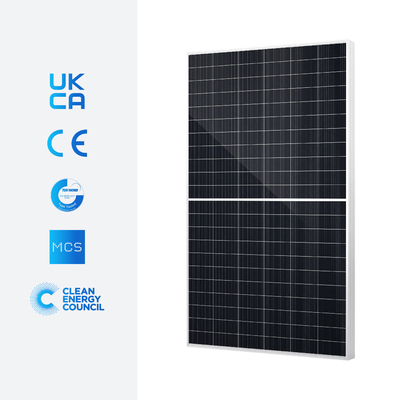

Certifications
Double Glass Bifacial PV Panel 640W 645W 650W 655W 660W 665W for Solar Energy System 6
Company Profile
Hefei Sunrise New Energy Co.,Ltd is a professional and fast growing company with more than 10 years experience in New energy field, located in Hefei city, Anhui province. Our company is committed to high efficient and clean energy research and development, and bring quick & professional service to our customers in all aspects of solar products and projects.

Being the top distributor of Tier 1 solar product brands including Longi, Sungrow, Trina, JA, Canadian, Growatt, Goodwe, Sunrise provides not only solar panels and solar inverters, but also system integration for on-grid systems, off-grid systems, energy storage systems, etc.

Our products have been sold to many countries and regions in Europe, North America, the Middle East and South Africa, etc. Aalso have got certificates of TUV ,CE, CQC, etc.

To complete the most intimate cooperation, we will provide customers with the best quality products & service, and sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation.

Our strength

1. 10 years experience of PV products, cheaper price.
2. We provide very fast delivery after order confirmed.
3. Professional technical team support.
4. One-stop photovoltaic product solutions to provide.
5. Complete certificates.
6. Provide ODM/OEM service.
7. Long warranty and after-sales service.
Packaging and Shipping
Double Glass Bifacial PV Panel 640W 645W 650W 655W 660W 665W for Solar Energy System 7
Double Glass Bifacial PV Panel 640W 645W 650W 655W 660W 665W for Solar Energy System 8
Double Glass Bifacial PV Panel 640W 645W 650W 655W 660W 665W for Solar Energy System 9
Double Glass Bifacial PV Panel 640W 645W 650W 655W 660W 665W for Solar Energy System 10
FAQ
Q1. What is your main products?
Our main products including Solar Panel, Inverter, Battery,Solar System, Mounting System and other related Solar Power Accessories.

Q2. Are you a factory or trading company?
We are a professional Solar energy products manufacturer in China with own factory and the advanced production line, can ensure superior supply capacity.

Q3. How can you guarantee your product quality?
We will provide a pre-production sample before mass production. Each product will after several inspection procedures before shipment.

Q4. Could you print our company logo in nameplate and package?
Yes ,we can customized your logo according to your design and request.

Q5. What if I don't have export experience?
We have reliable forwarder agent which can ship items to you by Sea/Air/Express to your seaport or doorstep.Anyway, we will help you choose the most suitable shipping service.
