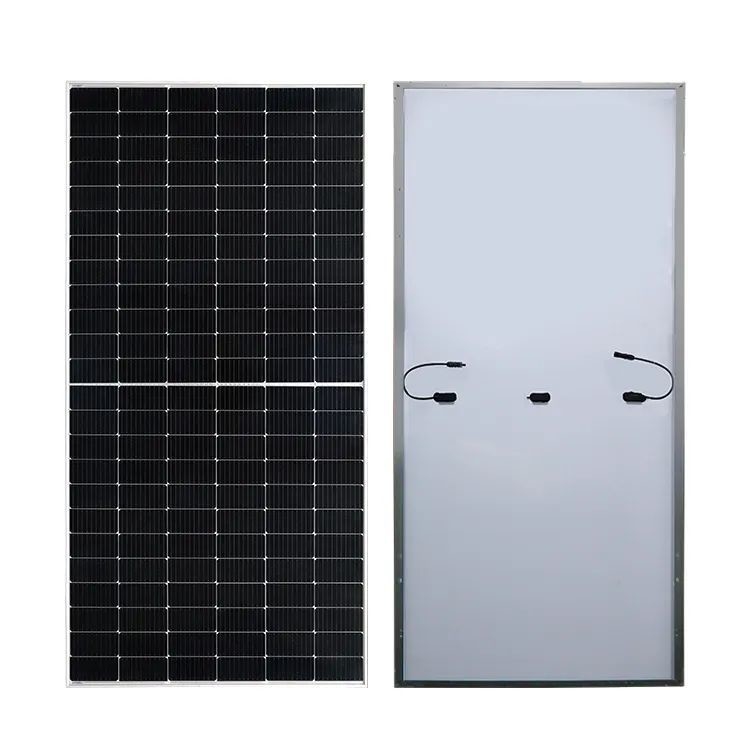

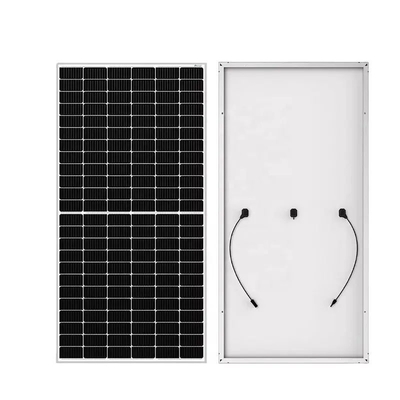

LONGI LR5-72HPH 545W-565W Solar Panels Bifacial Energy Yield and Globally Validated
  • name
  • name
  • name
  • name
  • name
  • name

LONGI LR5-72HPH 545W-565W Solar Panels Bifacial Energy Yield and Globally Validated

Brand Name: LONGI
Model Number: Hi-MO5M 545W~565W LR5-72HPH
MOQ: 10000 watts
Price: $0.13/watts >=10000 watts
Detail Information
Product Description
Detail Information
Place of Origin:
Anhui, China
Cell Size:
182mmx182mm
Type:
Mono-facial
Panel Dimensions:
2278*1134*35
Panel Efficiency:
20.9-21.7%
Warranty:
25years
Totipotent:
Photovoltaic Panel
Cell Orientation:
144(6*24)
Junction Box:
IP68,three Diodes
Output Cable:
4mm²,+400,-200mm/±1400mm Length Can Be Customized
Glass:
Single Glass,3.2mm Coated Tempered Glass
Frame:
Anodized Aluminum Alloy Frame
Weight:
27.5kg
Dimension Packaging:
31pcs Perpallet/155pcs Per 20'GP/620pcs Per 40°HC
Maximum System Voltage:
DC1500V(IEC/UL)
Maximum Series Fuse Rating:
25A
Product Description
Products Description
LONGI LR5-72HPH 545W-565W Solar Panels Bifacial Energy Yield and Globally Validated 0
LONGI LR5-72HPH 545W-565W Solar Panels Bifacial Energy Yield and Globally Validated 1
Operational Temperature
-40℃~+85℃

Power OutputTolerance
0~3%
Maximum System Voltage
DC1500V(IEC/UL)
Maximum Series Fuse Rating
30A
NominalOperating Cell Temperature
45±2℃
Protection Class
Class ll
Bifaciality
70±5%
Fire Rating
ULtype 29
IEC Class C
Temperature Coefficient of lsc
+0.050%/℃
Temperature Coefficientof Voc
-0.265%/℃
Temperature Coefficientof Pmax
-0.340%/℃
Product packaging
LONGI LR5-72HPH 545W-565W Solar Panels Bifacial Energy Yield and Globally Validated 2
LONGI LR5-72HPH 545W-565W Solar Panels Bifacial Energy Yield and Globally Validated 3
LONGI LR5-72HPH 545W-565W Solar Panels Bifacial Energy Yield and Globally Validated 4
LONGI LR5-72HPH 545W-565W Solar Panels Bifacial Energy Yield and Globally Validated 5
LONGI LR5-72HPH 545W-565W Solar Panels Bifacial Energy Yield and Globally Validated 6
Application program
LONGI LR5-72HPH 545W-565W Solar Panels Bifacial Energy Yield and Globally Validated 7
LONGI LR5-72HPH 545W-565W Solar Panels Bifacial Energy Yield and Globally Validated 8
LONGI LR5-72HPH 545W-565W Solar Panels Bifacial Energy Yield and Globally Validated 9
Company Profile
Hefei Sunrise New Energy Co.,Ltd is a professional and fast growing company with more than 10 years experience in New energy field, located in Hefei city ,Anhui province .Our company is committed to high efficient and clean energy research and development ,and bring quick & professional service to our customers in all aspects of solar products and projects.
Being the top distributor of Tier 1 solar product brands including Longi, Sungrow, Trina, JA, Canadian, Growatt, Goodwe, Sunrise provides not only solar panels and solar inverters,but also system integration for on-grid systems, off-grid systems, energy storage systems, etc.
Our products have been sold to many countries and regions in Europe, North America, the Middle East and South Africa,etc. also have got certificates of TUV, CE, CQC , etc .
To complete the most intimate cooperation, We will provide customers with the best quality products & service,and sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation .

LONGI LR5-72HPH 545W-565W Solar Panels Bifacial Energy Yield and Globally Validated 10
LONGI LR5-72HPH 545W-565W Solar Panels Bifacial Energy Yield and Globally Validated 11
FAQ
1. What is your main products?
Our main products including Solar Panel, Inverter, Battery,Solar System, Mounting System and other related Solar Power Accessories;

2. Are you a factory or trading company ?
We are a professional Solar energy products manufacturer in China with own factory and the advanced production line ,can ensure superior supply capacity.

3.How can you guarantee your product quality ?
We will provide a pre-production sample before mass production, Each product will after several inspection procedures before shipment;

4.Could you print our company logo in nameplate and package ?
Yes ,we can customized your logo according to your design and request;

5. What if I don't have export experience ?
We have reliable forwarder agent which can ship items to you by Sea/Air/Express to your seaport or doorstep.Anyway, we will help you choose the most suitable shipping service.
LONGI LR5-72HPH 545W-565W Solar Panels Bifacial Energy Yield and Globally Validated 12
